SM0603HCL

Active

Bivar Inc.

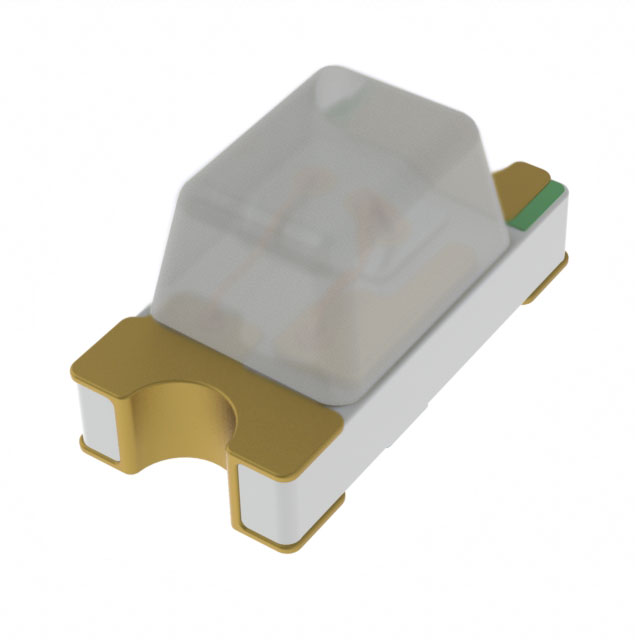

LED, SMD, 603, 2 LEADS, HE RED, 645 NM, WATER CLEAR LENS, 140 DEG VIEWING ANGLE, LOW CURRENT,

Search across all available documentation for this part.

Active

Bivar Inc.

LED, SMD, 603, 2 LEADS, HE RED, 645 NM, WATER CLEAR LENS, 140 DEG VIEWING ANGLE, LOW CURRENT,

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Peak	Millicandela Rating	Wavelength - Dominant	Mounting Type	Viewing Angle	Lens Color	Lens Transparency	Configuration	Voltage - Forward (Vf) (Typ)	Color	Lens Size [x]	Lens Size [y]	Package / Case	Lens Style	Height (Max) [Max] [z]	Current - Test	Current - DC Forward (If) (Max) [Max]	Type	Wavelength [Min]	Wavelength [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Wavelength - Dominant [custom]	Height (Max) [Max]
Bivar Inc. SM0603HC	1.6 mm	0.8 mm	660 nm	15 mcd	643 nm	Surface Mount	130 °	Colorless	Clear	Standard	1.8 V	Red	1 mm	0.8 mm	0603 (1608 Metric)	Rectangle with Flat Top	0.8 mm	20 mA
Bivar Inc. SM0603UV-395						Surface Mount	130 °				3.4 V				0603 (1608 Metric)				25 mA	Ultraviolet (UV)	395 nm	400 nm	80 °C	-30 °C	Top View
Bivar Inc. SM0603YC	1.6 mm	0.8 mm	583 nm	6 mcd		Surface Mount	130 °	Colorless	Clear	Standard	2 V	Yellow	1 mm	0.8 mm	0603 (1608 Metric)	Rectangle with Flat Top	0.8 mm	20 mA								585 nm
Bivar Inc. SM0603GCL	1.6 mm	0.8 mm	575 nm	3.6 mcd	574 nm	Surface Mount	130 °	Colorless	Clear	Standard	1.9 V	Green	1 mm	0.8 mm	0603 (1608 Metric)	Rectangle with Flat Top		2 mA									0.6 mm
Bivar Inc. SM0603HCL	1.6 mm	0.8 mm	645 nm	11.5 mcd	631 nm	Surface Mount	130 °	Colorless	Clear	Standard	1.9 V	Red	1 mm	0.8 mm	0603 (1608 Metric)	Rectangle with Flat Top	0.8 mm	2 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red 631nm LED Indication - Discrete 1.9V 0603 (1608 Metric)
