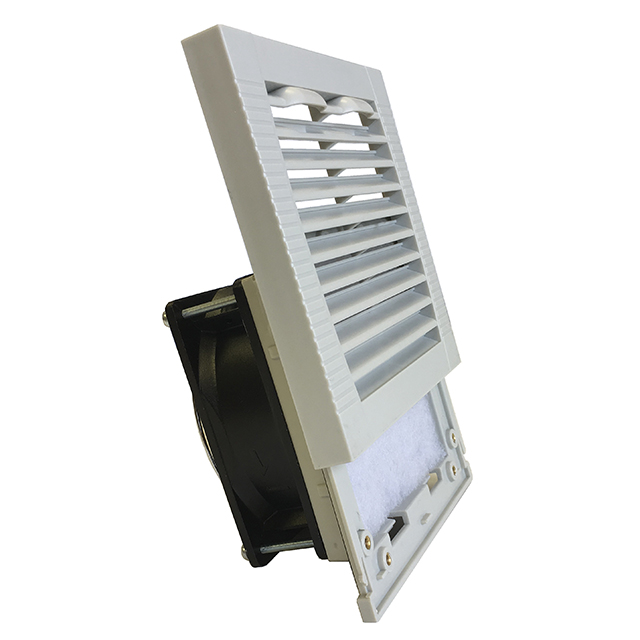

OA109LFGS221T

Active

Orion Fans

FAN AXIAL 156X76.8MM 230VAC TERM

Search across all available documentation for this part.

Active

Orion Fans

FAN AXIAL 156X76.8MM 230VAC TERM

Technical Specifications

Parameters and characteristics for this part

Specification	OA109LFGS221T

Air Flow	106 CFM
Air Flow	2.97 mł/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Kit
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	40000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	46 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	15 W
RPM	3100 RPM
Size / Dimension	Square
Size / Dimension [x]	156 mm
Size / Dimension [z]	156 mm
Static Pressure	0.32 in H2O
Static Pressure	79.7 Pa
Termination	2 Terminals
Voltage - Rated	230 VAC
Width [y]	76.8 mm

Part	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Features	Noise	Air Flow	Air Flow	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Material - Blade	Bearing Type	Approval Agency	Width [y]	Voltage - Rated	Fan Type	Power (Watts)	RPM	Lifetime @ Temp.	Termination	Ingress Protection
Orion Fans OA109LFGS221T	156 mm	Square	156 mm	Kit	46 dB(A)	106 CFM	2.97 mł/min	Aluminum	-20 °C	70 °C	-20 C	70 °C	0.32 in H2O	79.7 Pa	Polybutylene Terephthalate (PBT)	Ball	cURus TUV	76.8 mm	230 VAC	Tubeaxial	15 W	3100 RPM	40000 Hrs	2 Terminals	IP55 - Dust Protected Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 40.69

General part information

Fan Tubeaxial 230VAC Square - 156mm L x 156mm H Ball 106.0 CFM (2.97m³/min) 2 Terminals
