MB2185SS1W03-BC
ObsoleteNKK Switches

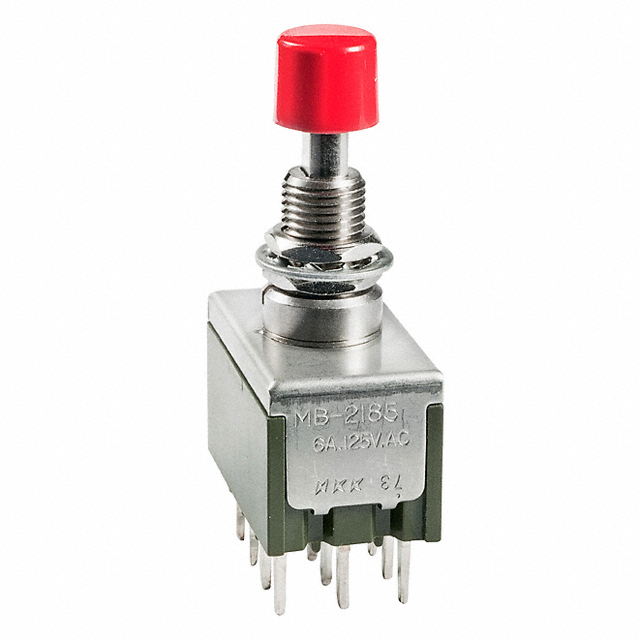

SWITCH PUSHBUTTON 4PDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MB2185SS1W03-BC
ObsoleteNKK Switches
SWITCH PUSHBUTTON 4PDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MB2185SS1W03-BC |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | 4PDT |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 3 A, 6 A |
| Electrical Life | 25000 Steps |
| Features | Epoxy Sealed Terminals |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
MB2185S Series
| Part | Panel Cutout Dimensions [diameter] | Mounting Type | Voltage Rating - AC | Electrical Life | Mechanical Life | Actuator Marking | Features | Actuator Type | Voltage Rating - DC | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Type | Circuit | Switch Function | Color - Actuator/Cap | Current Rating (Amps) | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 12.5 mm | Panel Mount Rear | 125 V | 25000 Steps | 100000 Cycles | No Marking | Epoxy Sealed Terminals | Button Round | 30 V | Solder Lug | -30 ░C | 85 °C | Standard | 4PDT | On-On | Black | 3 A 6 A | |
NKK Switches | 12.5 mm | Panel Mount Rear | 125 V | 25000 Steps | 100000 Cycles | No Marking | Epoxy Sealed Terminals | Button Round | 30 V | Solder Lug | -30 ░C | 85 °C | Standard | 4PDT | On-On | Black | 3 A 6 A | |
NKK Switches | 12.5 mm | Panel Mount Rear | 125 V | 25000 Steps | No Marking | Epoxy Sealed Terminals | Button Round | 30 V | Solder Lug | -30 ░C | 85 °C | Standard | 4PDT | On-On | Red | 3 A 6 A | IP67 - Dust Tight Waterproof | |
NKK Switches | 12.5 mm | Panel Mount Rear | 125 V | 25000 Steps | No Marking | Epoxy Sealed Terminals | Button Round | 30 V | Solder Lug | -30 ░C | 85 °C | Standard | 4PDT | On-On | White | 3 A 6 A | IP67 - Dust Tight Waterproof | |
NKK Switches | 6.5 mm | Panel Mount Rear | 125 V | 25000 Steps | 100000 Cycles | No Marking | Epoxy Sealed Terminals | Button Round | 30 V | PC Pin | -30 ░C | 85 °C | Standard | 4PDT | On-On | Red | 3 A 6 A | |
NKK Switches | 6.5 mm | Panel Mount Rear | 125 V | 25000 Steps | No Marking | Epoxy Sealed Terminals | Plunger for Cap | 30 V | Solder Lug | -30 ░C | 85 °C | Standard | 4PDT | On-On | 3 A 6 A | IP67 - Dust Tight Waterproof | ||
NKK Switches | 12.5 mm | Panel Mount Rear | 28 V | 50000 Cycles | 100000 Cycles | No Marking | Epoxy Sealed Terminals | Button Round | 28 V | Solder Lug | -30 ░C | 85 °C | Standard | 4PDT | On-On | Yellow | 0.4 VA | |
NKK Switches | 6.5 mm | Panel Mount Rear | 125 V | 25000 Steps | 100000 Cycles | No Marking | Epoxy Sealed Terminals | Button Round | 30 V | PC Pin | -30 ░C | 85 °C | Standard | 4PDT | On-On | Green | 3 A 6 A | |
NKK Switches | 6.5 mm | Panel Mount Rear | 125 V | 25000 Steps | 100000 Cycles | No Marking | Epoxy Sealed Terminals | Button Round | 30 V | Solder Lug | -30 ░C | 85 °C | Standard | 4PDT | On-On | Black | 3 A 6 A | |
NKK Switches | 6.5 mm | Panel Mount Rear | 28 V | 50000 Cycles | 100000 Cycles | No Marking | Epoxy Sealed Terminals | Plunger for Cap | 28 V | Wire Wrap | -30 ░C | 85 °C | Standard | 4PDT | On-On | 0.4 VA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MB2185S Series
Pushbutton Switch 4PDT Standard Panel Mount, Rear
Documents
Technical documentation and resources
