0395126002

Active

Molex

TERM BLOCK HDR 2POS 3.81MM

Deep-Dive with AI

Documents39500-001 Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395126002

Color	Green
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - UL	8 A
Header Orientation	90°, Right Angle
Insulation Height	0.27 "
Insulation Height	6.86 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	2
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

039512 Series

Part	Pitch [x]	Pitch [x]	Current - UL	Type	Termination Style	Header Orientation	Color	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Mounting Type	Contact Mating Finish	Number of Levels	Number of Positions	Voltage - UL	Contact Material	Positions Per Level
Molex 0395126508	0.15 in	3.81 mm	8 A	Header Male Pins Shrouded (4 Side)	Solder	90° Right Angle	Green	-40 °C	105 ░C	0.27 "	6.86 mm	UL94 V-0	3.5 mm	0.138 in	Through Hole	Gold	1	8	300 V	Brass	8
Molex 0395121509	0.15 in	3.81 mm	8 A	Header Male Pins Shrouded (4 Side)	Solder	90° Right Angle	Black	-40 °C	105 ░C	0.27 "	6.86 mm	UL94 V-0	3.5 mm	0.138 in	Through Hole	Gold	1	9	300 V	Brass	9
Molex 0395121503	0.15 in	3.81 mm	8 A	Header Male Pins Shrouded (4 Side)	Solder	90° Right Angle	Black	-40 °C	105 ░C	0.27 "	6.86 mm	UL94 V-0	3.5 mm	0.138 in	Through Hole	Gold	1		300 V	Brass	3
Molex 0395126007	0.15 in	3.81 mm	8 A	Header Male Pins Shrouded (4 Side)	Solder	90° Right Angle	Green	-40 °C	105 ░C	0.27 "	6.86 mm	UL94 V-0	3.5 mm	0.138 in	Through Hole	Tin	1	7	300 V	Brass	7
Molex 0395126504	0.15 in	3.81 mm	8 A	Header Male Pins Shrouded (4 Side)	Solder	90° Right Angle	Green	-40 °C	105 ░C	0.27 "	6.86 mm	UL94 V-0	3.5 mm	0.138 in	Through Hole	Gold	1	4	300 V	Brass	4
Molex 0395121520	0.15 in	3.81 mm	8 A	Header Male Pins Shrouded (4 Side)	Solder	90° Right Angle	Black	-40 °C	105 ░C	0.27 "	6.86 mm	UL94 V-0	3.5 mm	0.138 in	Through Hole	Gold	1	20	300 V	Brass	20
Molex 0395126002	0.15 in	3.81 mm	8 A	Header Male Pins Shrouded (4 Side)	Solder	90° Right Angle	Green	-40 °C	105 ░C	0.27 "	6.86 mm	UL94 V-0	3.5 mm	0.138 in	Through Hole	Tin	1	2	300 V	Brass	2
Molex 0395121011	0.15 in	3.81 mm	8 A	Header Male Pins Shrouded (4 Side)	Solder	90° Right Angle	Black	-40 °C	105 ░C	0.27 "	6.86 mm	UL94 V-0	3.5 mm	0.138 in	Through Hole	Tin	1	11	300 V	Brass	11
Molex 0395121502	0.15 in	3.81 mm	8 A	Header Male Pins Shrouded (4 Side)	Solder	90° Right Angle	Black	-40 °C	105 ░C	0.27 "	6.86 mm	UL94 V-0	3.5 mm	0.138 in	Through Hole	Gold	1	2	300 V	Brass	2
Molex 0395126512	0.15 in	3.81 mm	8 A	Header Male Pins Shrouded (4 Side)	Solder	90° Right Angle	Green	-40 °C	105 ░C	0.27 "	6.86 mm	UL94 V-0	3.5 mm	0.138 in	Through Hole	Gold	1	12	300 V	Brass	12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.66
		10	$ 0.41
		25	$ 0.35
		50	$ 0.31
		100	$ 0.31
		250	$ 0.26
		500	$ 0.25
		1680	$ 0.23
		5040	$ 0.27

Description

General part information

039512 Series

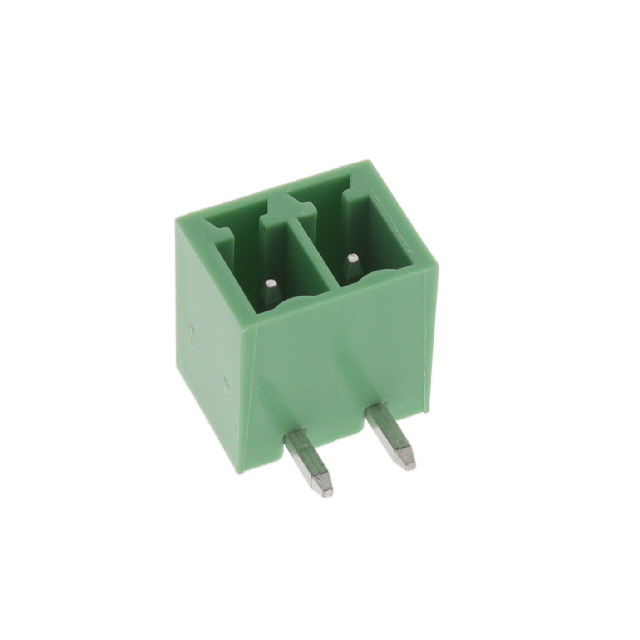

2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole

Documents

Technical documentation and resources

39500-001 Prod Spec

Datasheet
