BU200Z-178-HT

Obsolete

On Shore Technology Inc.

CONN IC DIP SOCKET 20POS GOLD

Search across all available documentation for this part.

Obsolete

On Shore Technology Inc.

CONN IC DIP SOCKET 20POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BU200Z-178-HT

Contact Finish - Mating	Gold
Contact Finish - Post	Copper
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Finish Thickness - Post	Flash
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	7 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions or Pins (Grid)	20
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length [x]	1.5 mm
Termination Post Length [x]	0.059 in
Type	0.3 "
Type	7.62 mm
Type	DIP

Part	Contact Finish Thickness - Post	Features	Number of Positions or Pins (Grid)	Contact Material - Mating	Contact Resistance	Contact Material - Post [custom]	Contact Finish - Mating	Termination Post Length [x]	Termination Post Length [x]	Pitch - Post	Pitch - Post	Housing Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Material Flammability Rating	Contact Finish - Post	Mounting Type	Current Rating (Amps)	Type	Type	Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]
On Shore Technology Inc. BU200Z-178-HT	Flash	Open Frame	20	Beryllium Copper	7 mOhm	Brass	Gold	1.5 mm	0.059 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT) Glass Filled	78.7 µin	2 µm	Solder	UL94 V-0	Copper	Surface Mount	1 A	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

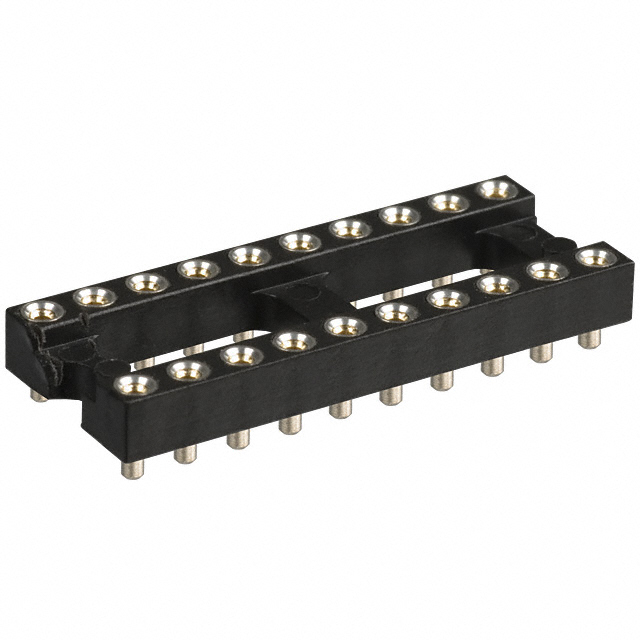

20 (2 x 10) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Surface Mount
