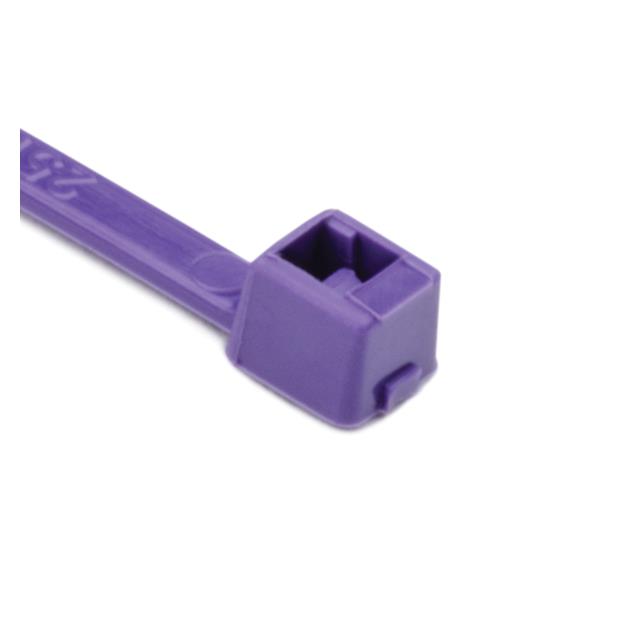

T18R7M4

Active

HELLERMANNTYTON

CBL TIE LOCKING VIOL 18LB 3.93"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & Securing Datasheet

T18R7M4

Active

HELLERMANNTYTON

CBL TIE LOCKING VIOL 18LB 3.93"

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & Securing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T18R7M4

Bundle Diameter [diameter]	0.86 in
Bundle Diameter [diameter]	22 mm
Color	Violet
Length - Actual	0.328 ft
Length - Actual	3.93 in
Length - Actual	100 mm
Length - Approximate	4 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Tensile Strength	18 lbs
Tensile Strength	8.16 kg
Width [y]	0.096 in
Width [y]	2.45 mm
Wire/Cable Tie Type	Standard, Locking

T18R Series

Part	Tensile Strength	Tensile Strength	Color	Length - Approximate	Features	Mounting Type	Length - Actual	Length - Actual	Length - Actual	Wire/Cable Tie Type	Width [y]	Width [y]	Material	Bundle Diameter [diameter]	Bundle Diameter [diameter]
HELLERMANNTYTON T18R2HALM4	6.35 kg	14 lbs	Red	4 in	Plenum Rated	Free Hanging (In-Line)	0.328 ft	3.93 in	100 mm	Locking Standard	0.096 in	2.45 mm	Polyamide (PA66) Nylon 6/6	0.86 in	22 mm
HELLERMANNTYTON T18R9STNLM4	8.16 kg	18 lbs	Natural	4 in	High Temperature	Free Hanging (In-Line)	0.328 ft	3.93 in	100 mm	Locking Standard	0.096 in	2.45 mm	Polyamide (PA46) Nylon 4/6	0.86 in	22 mm
HELLERMANNTYTON T18R0UVC2	8.16 kg	18 lbs	Black	4 in	UV Resistant	Free Hanging (In-Line)	0.328 ft	3.93 in	100 mm	Locking Standard	0.096 in	2.45 mm	Polyamide (PA66) Nylon 6/6	0.86 in	22 mm
HELLERMANNTYTON T18R0HSM4	8.16 kg	18 lbs	Black	4 in	Heat Stabilized	Free Hanging (In-Line)	0.328 ft	3.93 in	100 mm	Locking Standard	0.096 in	2.45 mm	Polyamide (PA66) Nylon 6/6	0.86 in	22 mm
HELLERMANNTYTON T18R2C2	8.16 kg	18 lbs	Red	4 in		Free Hanging (In-Line)	0.328 ft	3.93 in	100 mm	Locking Standard	0.096 in	2.45 mm	Polyamide (PA66) Nylon 6/6	0.86 in	22 mm
HELLERMANNTYTON T18R7M4	8.16 kg	18 lbs	Violet	4 in		Free Hanging (In-Line)	0.328 ft	3.93 in	100 mm	Locking Standard	0.096 in	2.45 mm	Polyamide (PA66) Nylon 6/6	0.86 in	22 mm
HELLERMANNTYTON T18R9VOM4	8.16 kg	18 lbs	White	4 in	Flame Retardant	Free Hanging (In-Line)	0.328 ft	3.93 in	100 mm	Locking Standard	0.096 in	2.45 mm	Polyamide (PA66) Nylon 6/6	0.86 in	22 mm
HELLERMANNTYTON T18R2C2UL	8.16 kg	18 lbs	Red	4 in	Plenum Rated UL Rated	Free Hanging (In-Line)	0.328 ft	3.93 in	100 mm	Locking Standard	0.096 in	2.45 mm	Polyamide (PA66) Nylon 6/6	0.86 in	22 mm
HELLERMANNTYTON T18R2M4	8.16 kg	18 lbs	Red	4 in		Free Hanging (In-Line)	0.328 ft	3.93 in	100 mm	Locking Standard	0.096 in	2.45 mm	Polyamide (PA66) Nylon 6/6	0.86 in	22 mm
HELLERMANNTYTON T18R5-2K2	8.16 kg	18 lbs	Green Red Stripe	4 in		Free Hanging (In-Line)	0.328 ft	3.93 in	100 mm	Locking Standard	0.096 in	2.45 mm	Polyamide (PA66) Nylon 6/6	0.86 in	22 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	240000	$ 0.05
