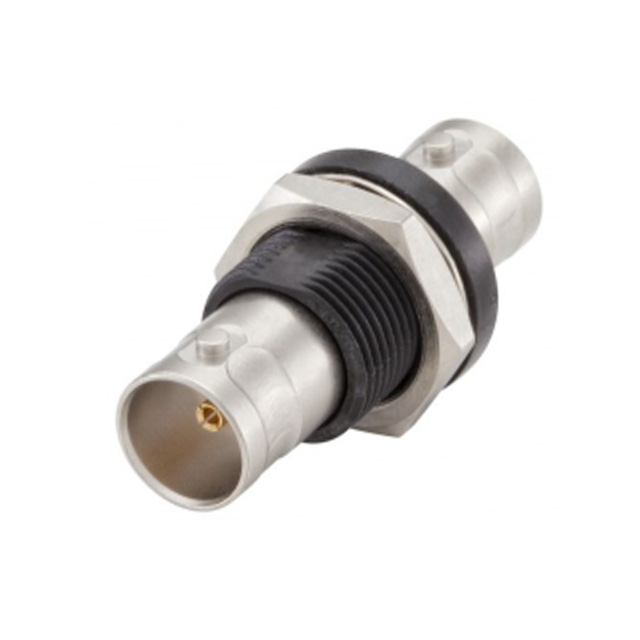

71K542-K00A5

Active

Rosenberger

CONN ADAPT JACK-JACK BNC 75 OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN ADAPT JACK-JACK BNC 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	71K542-K00A5

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Flange
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-25 °C
Style	Straight

Part	Center Contact Plating	Conversion Type	Center Gender	Convert From (Adapter End)	Body Material	Adapter Series	Adapter Type	Body Finish	Style	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Frequency - Max [Max]	Impedance	Convert To (Adapter End)	Mating Cycles	Mounting Feature	Includes
Rosenberger 71K542-K00A5	Gold	Same Series	Female to Female	BNC Jack Female Socket	Brass	BNC to BNC	Jack to Jack	Nickel	Straight	Bayonet Lock	-25 °C	110 °C	Polytetrafluoroethylene (PTFE)	4 GHz	75 Ohms	BNC Jack Female Socket	500	Flange	1 Connector 1 Lockwasher 1 Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms
