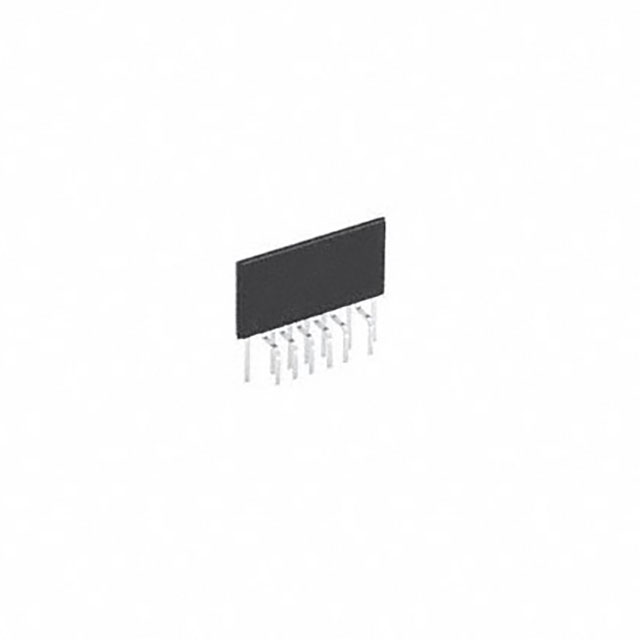

PFS7624H

Active

Power Integrations

IC PFC CTRLR CCM 123KHZ 16ESIP

Search across all available documentation for this part.

Active

Power Integrations

IC PFC CTRLR CCM 123KHZ 16ESIP

Technical Specifications

Parameters and characteristics for this part

Specification	PFS7624H

Frequency - Switching [Max]	123 kHz
Frequency - Switching [Min]	22 kHz
Mode	Continuous Conduction (CCM)
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Exposed Pad, 16-SSIP, Formed Leads
Package / Case	13 Leads
Supplier Device Package	eSIP-16D
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	10.2 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Package / Case	Frequency - Switching [Min]	Frequency - Switching [Max]	Mode	Supplier Device Package
Power Integrations PFS7624H	10.2 V	15 V	125 °C	-40 °C	Through Hole	16-SSIP Exposed Pad Formed Leads	13 Leads	22 kHz	123 kHz	Continuous Conduction (CCM)	eSIP-16D
Power Integrations PFS7624H/L

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PFC IC Continuous Conduction (CCM) 22kHz ~ 123kHz eSIP-16D
