SC4503WLTRT
ObsoleteSemtech Corporation
IC REG BOOST ADJ 1.4A 8MLPD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SC4503WLTRT |
|---|---|
| Current - Output | 1.4 A |
| Frequency - Switching | 1.3 MHz |
| Function | Step-Up |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

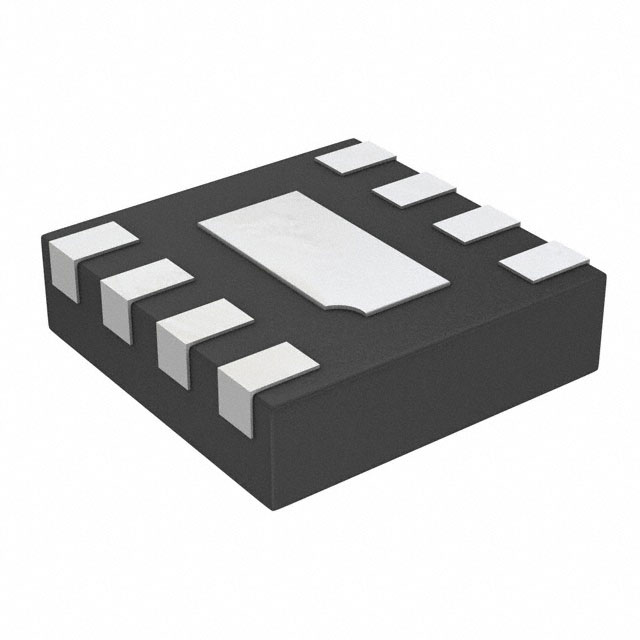

| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-MLPD-W (2x2) |
| Synchronous Rectifier | False |
| Topology | Boost |
| Voltage - Input (Max) [Max] | 20 V |
| Voltage - Input (Min) [Min] | 2.5 V |
| Voltage - Output (Max) [Max] | 27 V |
| Voltage - Output (Min/Fixed) | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SC4503 Series
Boost Switching Regulator IC Positive Adjustable 2.5V 1 Output 1.4A (Switch) 8-WFDFN Exposed Pad
Documents
Technical documentation and resources
No documents available
