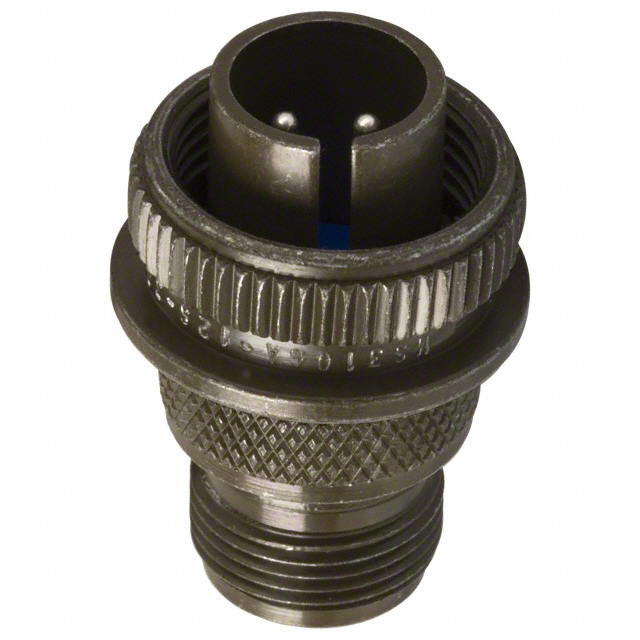

97-3106A-12S-3P(946)

Active

Amphenol Industrial Operations

CONN PLUG MALE 2P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN PLUG MALE 2P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	97-3106A-12S-3P(946)

Applications	Industrial, Automotive
Backshell Material, Plating	Aluminum Alloy, Black Zinc Alloy
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Insert Material	Diallyl Phthalate (DAP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Black Zinc Alloy
Shell Material	Aluminum Alloy
Shell Size - Insert	12S-3
Shielding	Unshielded

Part	Connector Type	Applications	Primary Material	Contact Material	Shell Size - Insert	Color	Shell Finish	Contact Finish - Mating	Orientation	Number of Positions	Shielding	Shell Material	Insert Material	Mounting Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating
Amphenol Industrial Operations 97-3106A-12S-3S	Female Sockets Plug	Automotive Industrial	Metal	Copper Alloy	12S-3	Olive Drab	Olive Drab Chromate over Cadmium	Silver	N	2	Unshielded	Aluminum Alloy	Diallyl Phthalate (DAP)	Free Hanging (In-Line)	Backshell Coupling Nut	-55 °C	125 °C
Amphenol Industrial Operations 97-3106A-12S-3P(946)	Male Pins Plug	Automotive Industrial	Metal	Copper Alloy	12S-3	Black	Black Zinc Alloy	Silver	N	2	Unshielded	Aluminum Alloy	Diallyl Phthalate (DAP)	Free Hanging (In-Line)	Backshell Coupling Nut	-55 °C	125 °C	Aluminum Alloy Black Zinc Alloy
Amphenol Industrial Operations 97-3106A-12SL-844S	Female Sockets Plug	Automotive Industrial	Metal	Copper Alloy	12SL-844	Olive Drab	Olive Drab Chromate over Cadmium	Silver	N	4	Unshielded	Aluminum Alloy	Diallyl Phthalate (DAP)	Free Hanging (In-Line)	Backshell Coupling Nut	-55 °C	125 °C
Amphenol Industrial Operations 97-3106A-12S-3S(946)	Female Sockets Plug	Automotive Industrial	Metal	Copper Alloy	12S-3	Black	Black Zinc Alloy	Silver	N	2	Unshielded	Aluminum Alloy	Diallyl Phthalate (DAP)	Free Hanging (In-Line)	Backshell Coupling Nut	-55 °C	125 °C	Aluminum Alloy Black Zinc Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Male Pins Solder Cup
