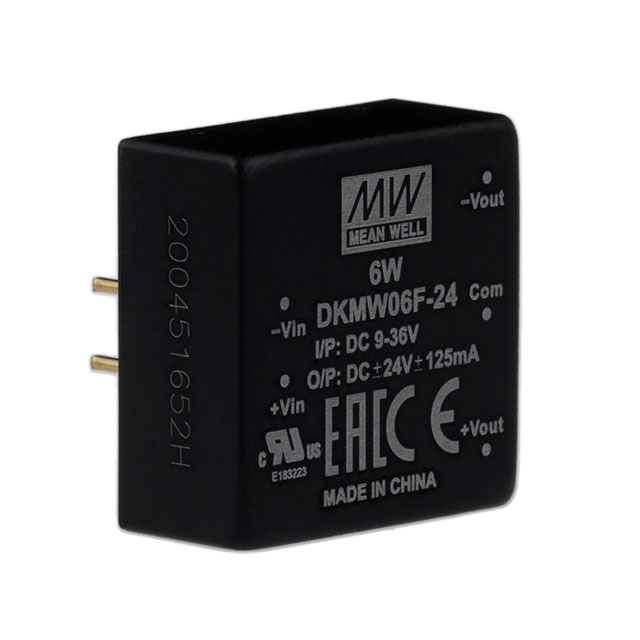

DKMW06F-24

Obsolete

MEAN WELL USA Inc.

DC DC CONVERTER +/-24V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DKMW06F-24

Obsolete

MEAN WELL USA Inc.

DC DC CONVERTER +/-24V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DKMW06F-24

Applications	ITE (Commercial)
Approval Agency	CE, EAC, cURus
Current - Output (Max)	125 mA
Current - Output (Max)	125 mA
Efficiency	85 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	5-DIP Module
Power (Watts)	6 W
Size / Dimension [x]	25.4 mm
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.46 in
Size / Dimension [z]	11.7 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	24 V
Voltage - Output 2	-24 V

DKMW06 Series

Part	Voltage - Output 1	Mounting Type	Approval Agency	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Voltage - Isolation	Voltage - Input (Min) [Min]	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Type	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max)
MEAN WELL USA Inc. DKMW06F-24	24 V	Through Hole	CE cURus EAC	36 V	125 mA	125 mA	1.5 kV	9 V	5-DIP Module	ITE (Commercial)	85 °C	-40 °C	85 %	Isolated Module	6 W	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	2	-24 V
MEAN WELL USA Inc. DKMW06G-05	5 V	Through Hole	CE cURus EAC	75 V			1.5 kV	18 V	5-DIP Module	ITE (Commercial)	85 °C	-40 °C	81 %	Isolated Module	6 W	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	2	-5 V	600 mA
MEAN WELL USA Inc. DKMW06G-15	15 V	Through Hole	CE cURus EAC	75 V			1.5 kV	18 V	5-DIP Module	ITE (Commercial)	85 °C	-40 °C	86 %	Isolated Module	6 W	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	2	-15 V
MEAN WELL USA Inc. DKMW06G-12	12 V	Through Hole	CE cURus EAC	75 V	250 mA		1.5 kV	18 V	5-DIP Module	ITE (Commercial)	85 °C	-40 °C	85 %	Isolated Module	6 W	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	2	-12 V		250 mA
MEAN WELL USA Inc. DKMW06F-15	15 V	Through Hole	CE cURus EAC	36 V			1.5 kV	9 V	5-DIP Module	ITE (Commercial)	85 °C	-40 °C	85 %	Isolated Module	6 W	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	2	-15 V
MEAN WELL USA Inc. DKMW06F-05	5 V	Through Hole	CE cURus EAC	36 V			1.5 kV	9 V	5-DIP Module	ITE (Commercial)	85 °C	-40 °C	81 %	Isolated Module	6 W	25.4 mm	0.46 in	25.4 mm	11.7 mm	25.4 mm	25.4 mm	2	-5 V	600 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 14.54

Description

General part information

DKMW06 Series

Isolated Module DC DC Converter 2 Output 24V -24V 125mA, 125mA 9V - 36V Input
