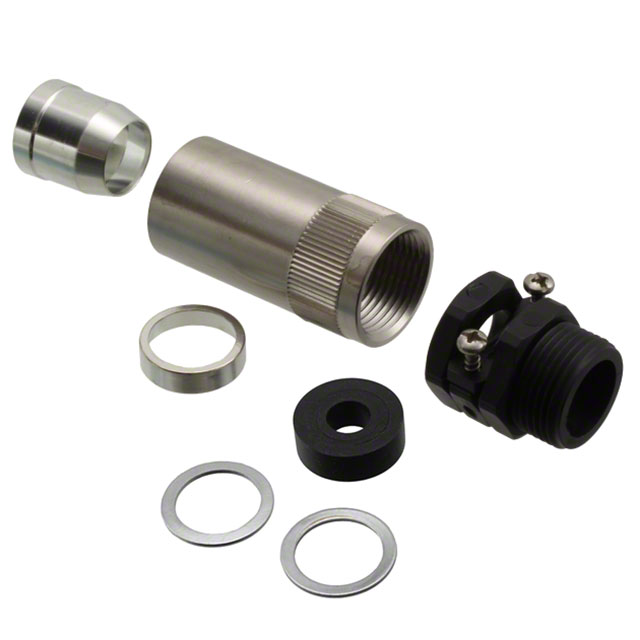

UT0S14JCPGN

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ14 PG13.5

Deep-Dive with AI

Search across all available documentation for this part.

UT0S14JCPGN

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ14 PG13.5

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT0S14JCPGN

Cable Exit	180 °
Cable Opening [diameter]	14.5 mm
Cable Opening [diameter]	0.571 in
Color	Silver
Features	Clamp Screws, Strain Relief
For Use With/Related Products	Trim Trio® UTO and UTOW Connectors
Includes	2 Screws, 2 Washers, 1 Cable Clamp, 1 Backshell, 1 Grommet
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Aluminum Alloy
Material Flammability Rating	UL94 V-0
Plating	Nickel
Shell Size - Insert	14
Shielding	Shielded
Thread Size	PG13.5
Type	Backshell, Cable Clamp

UT0S1 Series

Part	Features	Shell Size - Insert	Color	Ingress Protection	Shielding	Cable Exit	Material Flammability Rating	For Use With/Related Products	Thread Size	Type	Material	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Plating	Cable Opening [diameter]	Cable Opening [diameter]	Includes	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
Souriau-Sunbank by Eaton UT0S16JCL	Sealing Gland Strain Relief	16	Silver	IP68 IP69K	Shielded	180 °	UL94 V-0	Trim Trio® UTO and UTOW Connectors	PG16	Backshell Cable Clamp	Brass	0.531 in	13.5 mm	18 mm	0.709 in
Souriau-Sunbank by Eaton UT0S14JCPGN	Clamp Screws Strain Relief	14	Silver	IP65 - Dust Tight Water Resistant	Shielded	180 °	UL94 V-0	Trim Trio® UTO and UTOW Connectors	PG13.5	Backshell Cable Clamp	Aluminum Alloy					Nickel	14.5 mm	0.571 in	1 Backshell 1 Cable Clamp 1 Grommet 2 Screws 2 Washers
Souriau-Sunbank by Eaton UT0S16JC	Sealing Gland Strain Relief	16	Silver	IP68 IP69K	Shielded	180 °	UL94 V-0	Trim Trio® UTO and UTOW Connectors	PG16	Backshell Cable Clamp	Brass						10 mm 14.5 mm	0.394 in 0.571 in
Souriau-Sunbank by Eaton UT0S18JCS	Sealing Gland Strain Relief	18	Silver	IP68 IP69K	Shielded	180 °	UL94 V-0	Trim Trio® UTO and UTOW Connectors	PG16	Backshell Cable Clamp	Brass						10 mm 14.5 mm	0.394 in 0.571 in
Souriau-Sunbank by Eaton UT0S14JC	Sealing Gland Strain Relief	14	Silver	IP68 IP69K	Shielded	180 °	UL94 V-0	Trim Trio® UTO and UTOW Connectors	PG13.5	Backshell Cable Clamp	Brass									7 mm	0.413 in	10.5 mm	0.276 in
Souriau-Sunbank by Eaton UT0S18JCL	Sealing Gland Strain Relief	18	Silver	IP68 IP69K	Shielded	180 °	UL94 V-0	Trim Trio® UTO and UTOW Connectors	PG16	Backshell Cable Clamp	Brass	0.531 in	13.5 mm	18 mm	0.709 in
Souriau-Sunbank by Eaton UT0S12JCS	Sealing Gland Strain Relief	12	Silver	IP68 IP69K	Shielded	180 °	UL94 V-0	Trim Trio® UTO and UTOW Connectors	PG11	Backshell Cable Clamp	Brass									7 mm	0.413 in	10.5 mm	0.276 in
Souriau-Sunbank by Eaton UT0S10PG00T		10	Silver		Shielded		UL94 V-0	Trim Trio® UTO Connectors		Backshell Cable Clamp	Zinc Alloy					Nickel
Souriau-Sunbank by Eaton UT0S14JCS	Sealing Gland Strain Relief	14	Silver	IP68 IP69K	Shielded	180 °	UL94 V-0	Trim Trio® UTO and UTOW Connectors	PG13.5	Backshell Cable Clamp	Brass									7 mm	0.413 in	10.5 mm	0.276 in
Souriau-Sunbank by Eaton UT0S16JCSL	Sealing Gland Strain Relief	16	Silver	IP68 IP69K	Shielded	180 °	UL94 V-0	Trim Trio® UTO and UTOW Connectors	PG16	Backshell Cable Clamp	Brass	0.531 in	13.5 mm	18 mm	0.709 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.77
		10	$ 32.20
		25	$ 30.81
		50	$ 29.82
		100	$ 28.82
		250	$ 27.23

Description

General part information

UT0S1 Series

Silver Connector Backshell, Cable Clamp PG13.5 14
