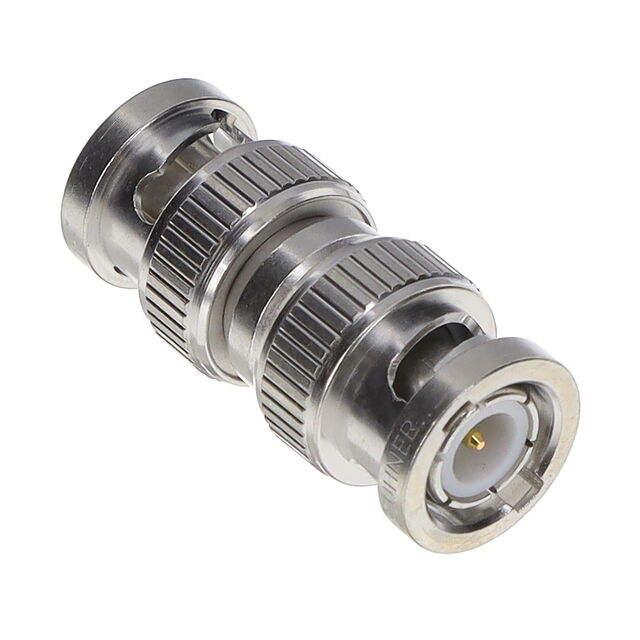

32_BNC-50-0-1/133_NE

Active

Huber+Suhner, Inc.

RF / COAXIAL ADAPTOR, ADAPTOR, STRAIGHT ADAPTER, BNC, PLUG, BNC, PLUG ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

RF / COAXIAL ADAPTOR, ADAPTOR, STRAIGHT ADAPTER, BNC, PLUG, BNC, PLUG ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	32_BNC-50-0-1/133_NE

Adapter Series	BNC to BNC
Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	BNC Plug, Male Pin
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Frequency - Max [Max]	Center Contact Plating	Conversion Type	Body Finish	Body Material	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Convert From (Adapter End)	Style	Adapter Type	Mating Cycles	Fastening Type	Center Gender	Center Contact Material	Mounting Type	Convert To (Adapter End)	Dielectric Material	Adapter Series
Huber+Suhner, Inc. 32_BNC-50-0-1/133_NE	4 GHz	Gold	Same Series	White Bronze	Brass	50 Ohms	-65 ░C	165 °C	BNC Plug Male Pin	Straight	Plug to Plug	500	Bayonet Lock	Male to Male	Brass	Free Hanging (In-Line)	BNC Plug Male Pin	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	BNC to BNC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To BNC Plug, Male Pin 50 Ohms
