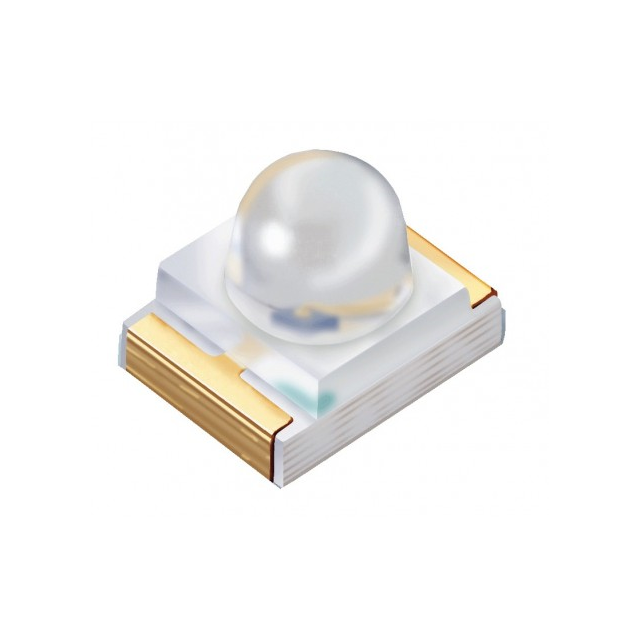

EAST3216RA1
ActiveEverlight Electronics Co Ltd
LED RED CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAST3216RA1
ActiveEverlight Electronics Co Ltd
LED RED CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAST3216RA1 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 2 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.6 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 500 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 624 nm |
| Wavelength - Peak | 632 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| 10 | $ 0.27 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.34 | ||
| 10 | $ 0.27 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| Tape & Reel (TR) | 1500 | $ 0.05 | ||
Description
General part information
EAST3216 Series
Red 624nm LED Indication - Discrete 2V 2-SMD, No Lead
