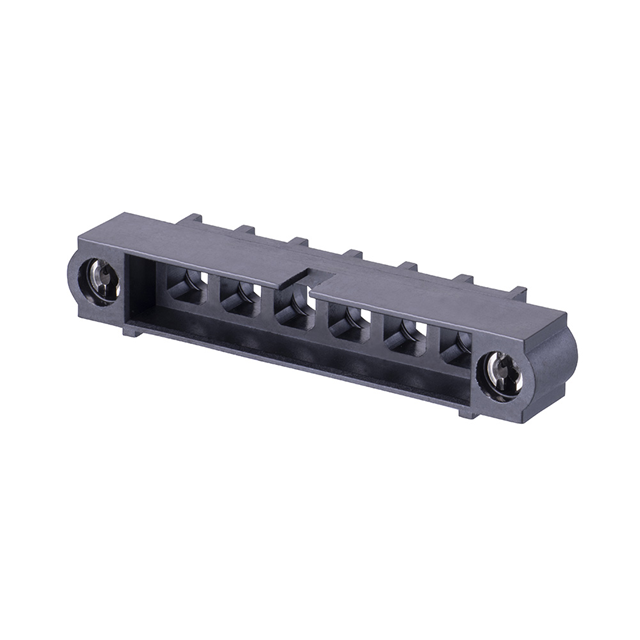

M80-273MC06-00-00

Active

Harwin Inc.

CONN PLUG HSG 6POS 4.00MM

Search across all available documentation for this part.

Active

Harwin Inc.

CONN PLUG HSG 6POS 4.00MM

Technical Specifications

Parameters and characteristics for this part

Part	Note	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Termination	Features	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Insulation Material	Contact Type
Harwin Inc. M80-273MA03-00-00	Contacts Not Included	Free Hanging (In-Line)	-55 °C	125 °C	Black	Crimp and Solder	Jackscrews Polarizing Key	1	3	4 mm	0.157 in	Plug	Polyphenylene Sulfide (PPS)	Male Pin
Harwin Inc. M80-273MU04-00-00	Contacts Not Included		-55 °C	125 °C	Black	Crimp and Solder	Mating Flange Mounting Flange Polarizing Key		4			Plug	Polyphenylene Sulfide (PPS)	Male Pin
Harwin Inc. M80-273MC06-00-00	Contacts Not Included	Free Hanging (In-Line)	-55 °C	125 °C	Black	Crimp and Solder	Jackscrews Polarizing Key	1	6	4 mm	0.157 in	Plug	Polyphenylene Sulfide (PPS)	Male Pin
Harwin Inc. M80-273M106-00-00	Contacts Not Included	Free Hanging (In-Line)	-55 °C	125 °C	Black	Crimp and Solder	Polarizing Key	1	6	4 mm	0.157 in	Plug	Polyphenylene Sulfide (PPS)	Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	30	$ 15.66

General part information

6 (Coax or Power) Rectangular Connectors - Housings Plug Black 0.157" (4.00mm)

Technical documentation and resources
