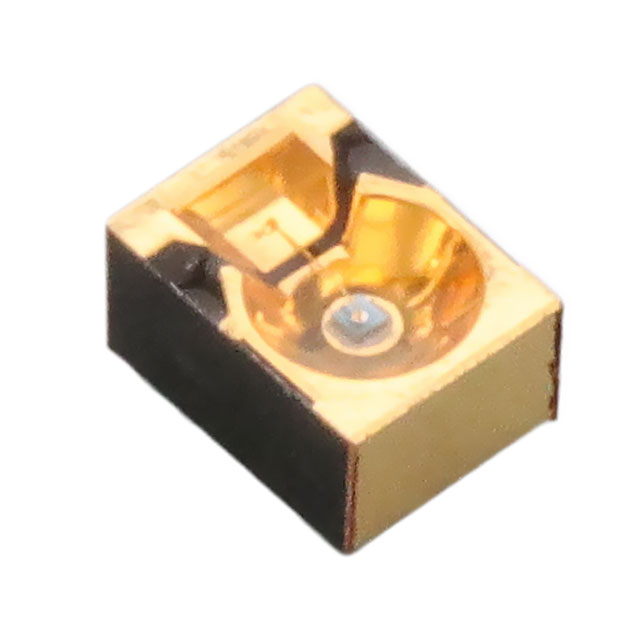

SFH 3600-Z

Active

ams-OSRAM USA INC.

SENSOR PHOTO 990NM TOP VIEW 2SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

SENSOR PHOTO 990NM TOP VIEW 2SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SFH 3600-Z

Current - Collector (Ic) (Max) [Max]	15 mA
Current - Dark (Id) (Max) [Max]	50 nA
Mounting Type	Surface Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	2-SMD
Power - Max [Max]	130 mW
Viewing Angle [custom]	40 °
Voltage - Collector Emitter Breakdown (Max) [Max]	35 V
Wavelength	990 nm

Part	Package / Case	Wavelength	Current - Collector (Ic) (Max) [Max]	Orientation	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Viewing Angle [custom]	Power - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Dark (Id) (Max) [Max]
ams-OSRAM USA INC. SFH 3600-Z	2-SMD	990 nm	15 mA	Top View	35 V	Surface Mount	40 °	130 mW	100 °C	-40 °C	50 nA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 990nm Top View 2-SMD
