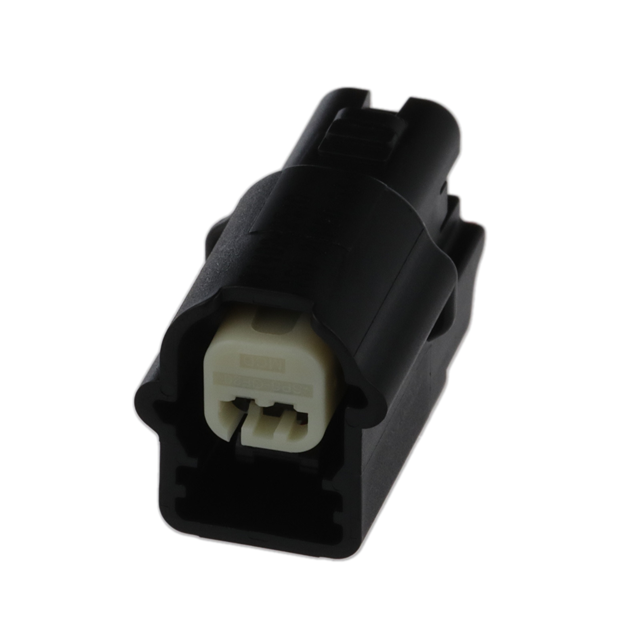

0314022510

Active

Molex

AUTOMOTIVE CONNECTORS MX64 02P REC KEY B BLK

Search across all available documentation for this part.

Active

Molex

AUTOMOTIVE CONNECTORS MX64 02P REC KEY B BLK

Technical Specifications

Parameters and characteristics for this part

Specification	0314022510

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Connector Position Assurance (CPA), Sealed
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Part	Number of Positions	Connector Type	Color	Insulation Material	Mounting Type	Contact Type	Note	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Termination	Number of Rows	Features	Pitch [x]	Pitch [x]
Molex 0314022110	2	Receptacle	Black	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Female Socket	Contacts Not Included	125 °C	-40 °C	Latch Holder	Crimp	1	Connector Position Assurance (CPA) Sealed	2.54 mm	0.1 in
Molex 0314022200	2	Receptacle	Gray	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Female Socket	Contacts Not Included	125 °C	-40 °C	Latch Holder	Crimp	1	Sealed	2.54 mm	0.1 in
Molex 0314022510	2	Receptacle	Black	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	Female Socket	Contacts Not Included	125 °C	-40 °C	Latch Holder	Crimp	1	Connector Position Assurance (CPA) Sealed	2.54 mm	0.1 in
Molex 0314022610	2	Receptacle	Black	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	Female Socket		125 °C	-40 °C	Latch Holder	Crimp	1	Connector Position Assurance (CPA) Sealed	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
