121I,GY

Active

Serpac

BOX ABS GRAY 4.1"L X 2.6"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 4.1"L X 2.6"W

Technical Specifications

Parameters and characteristics for this part

Specification	121I,GY

Area (L x W)	10.7 in²
Area (L x W)	69 cm²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	104.14 mm
Size / Dimension [x]	4.1 "
Size / Dimension [y]	2.6 "
Size / Dimension [y]	66.04 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	71.67 g
Weight	0.158 lb

Part	Features	Color	Material	Container Type	Design	Material Flammability Rating	Thickness	Thickness	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Area (L x W)	Area (L x W)	Weight	Weight	Height [z]	Height [z]
Serpac 121I,GY	PCB Supports	Gray	Plastic ABS	Box	Hand Held Split Sides	UL94 HB	2.54 mm	0.1 in	IP40 NEMA 1	2.6 "	66.04 mm	104.14 mm	4.1 "	10.7 in²	69 cm²	71.67 g	0.158 lb	38.1 mm	1.5 in
Serpac 121I,AL	PCB Supports	Almond	Plastic ABS	Box	Hand Held Split Sides	UL94 HB	2.54 mm	0.1 in	IP40 NEMA 1	2.6 "	66.04 mm	104.14 mm	4.1 "	10.7 in²	69 cm²	71.67 g	0.158 lb	38.1 mm	1.5 in
Serpac 121I,BK	PCB Supports	Black	Plastic ABS	Box	Hand Held Split Sides	UL94 HB	2.54 mm	0.1 in	IP40 NEMA 1	2.6 "	66.04 mm	104.14 mm	4.1 "	10.7 in²	69 cm²	71.67 g	0.158 lb	38.1 mm	1.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.26

General part information

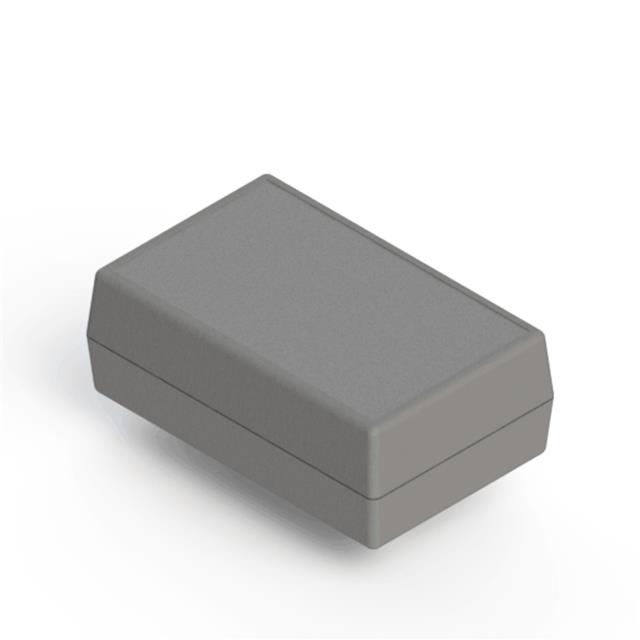

Box Plastic, ABS Gray Hand Held, Split Sides 4.100" L x 2.600" W (104.14mm x 66.04mm) X 1.500" (38.10mm)

Technical documentation and resources

No documents available
