W6382-3PG-P-528

Active

Conxall/Switchcraft

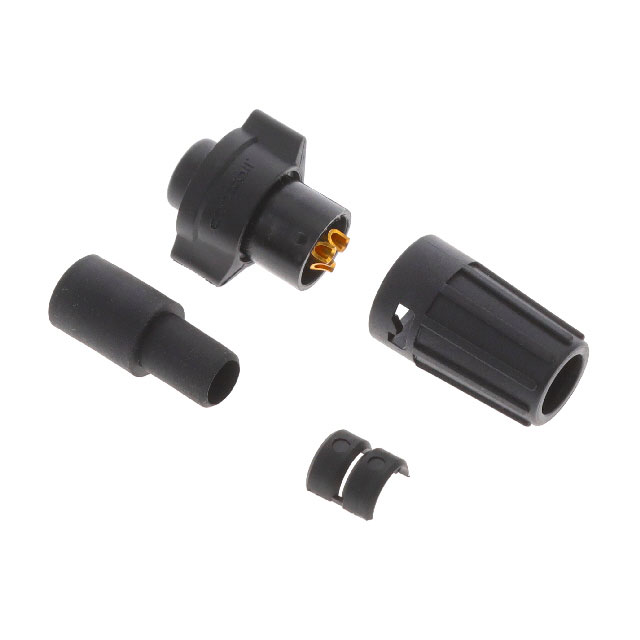

CONN PLUG MALE 3POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 3POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W6382-3PG-P-528

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Cable Opening [custom]	6.6 mm, 7.11 mm
Cable Opening [custom]	0.28 in, 0.26 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Orientation	Contact Material	Primary Material	Fastening Type	Applications	Shielding	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Features	Current Rating (Amps)	Insert Material	Ingress Protection	Color	Backshell Material, Plating	Voltage Rating	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft W6382-3PG-P-519	Male Pins Plug	85 °C	-40 °C	Free Hanging (In-Line)	Keyed	Copper Alloy	Plastic	Bayonet Lock	Automotive Communication Systems Instrumentation	Unshielded	0.21 in	0.19 in	4.83 mm	5.33 mm	Backshell Coupling Nut UV Resistant	Varies by Wire Gauge	Thermoplastic	IP66 IP67 IP68	Black	Thermoplastic	300 VAC	Gold
Conxall/Switchcraft W6382-3PG-P-3DC	Male Pins Plug	85 °C	-40 °C	Free Hanging (In-Line)	Keyed	Copper Alloy	Plastic	Bayonet Lock	Automotive Communication Systems Instrumentation	Unshielded					Backshell Coupling Nut UV Resistant	Varies by Wire Gauge	Thermoplastic	IP66 IP67 IP68	Black	Thermoplastic	300 VAC	Gold
Conxall/Switchcraft W6382-3PG-P-528	Male Pins Plug	85 °C	-40 °C	Free Hanging (In-Line)	Keyed	Copper Alloy	Plastic	Bayonet Lock	Automotive Communication Systems Instrumentation	Unshielded					Backshell Coupling Nut UV Resistant	Varies by Wire Gauge	Thermoplastic	IP66 IP67 IP68	Black	Thermoplastic	300 VAC	Gold	6.6 mm 7.11 mm	0.26 in 0.28 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 14.22

General part information

3 Position Circular Connector Plug, Male Pins Solder Cup

Technical documentation and resources

No documents available
