1.22.392.392/2200

Active

RAFI USA

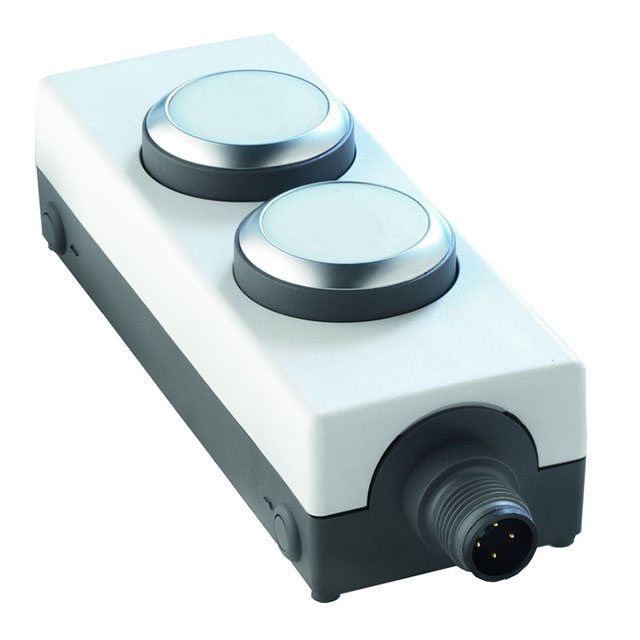

E-BOX M12, 2 PUSHBUTTONS FLAT WH

Search across all available documentation for this part.

Active

RAFI USA

E-BOX M12, 2 PUSHBUTTONS FLAT WH

Technical Specifications

Parameters and characteristics for this part

Specification	1.22.392.392/2200

Actuator Marking	No Marking
Actuator Type	Button, Dual, Round
Circuit	SPST-NO x 2
Color - Actuator/Cap	White
Current Rating (Amps)	100 mA
Features	Control Box Enclosure
Illumination Type, Color	White, LED
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Free Hanging
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Termination Style	Connector
Type	Illuminated, Standard

Part	Current Rating (Amps)	Actuator Type	Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Termination Style	Mounting Type	Actuator Marking	Ingress Protection	Features	Switch Function	Color - Actuator/Cap
RAFI USA 1.22.392.392/2200	100 mA	Button Dual Round	Illuminated Standard	SPST-NO x 2	70 °C	-25 °C	LED White	Connector	Free Hanging	No Marking	IP65 - Dust Tight Water Resistant	Control Box Enclosure	Off-Mom	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 202.28

General part information

Pushbutton Switch SPST-NO x 2 Standard, Illuminated Free Hanging
