OMNI-220-18-75-3C
ActiveWakefield-Vette

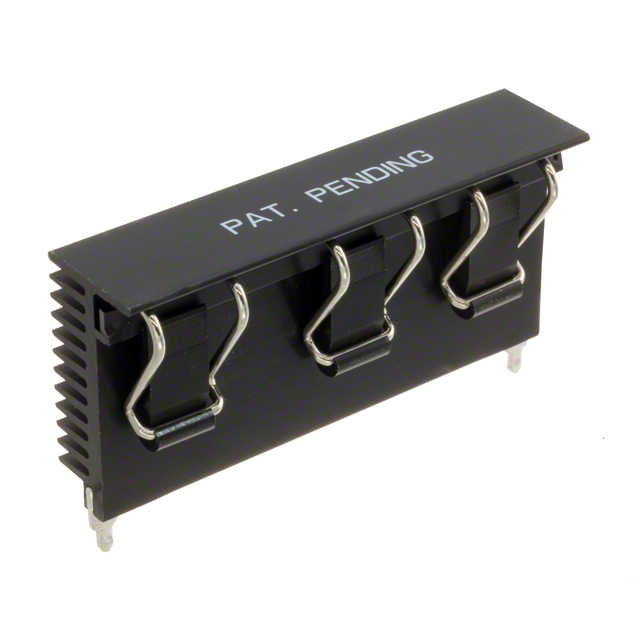

HEATSINK 18X75MM 3-CLIP TO-220
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OMNI-220-18-75-3C
ActiveWakefield-Vette
HEATSINK 18X75MM 3-CLIP TO-220
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OMNI-220-18-75-3C |
|---|---|
| Attachment Method | Clip, Solder Foot |
| Fin Height | 38.1 mm |
| Fin Height | 1.5 in |
| Length | 2.953 in |
| Length | 75 mm |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Shape | Rectangular, Fins |
| Type | Board Level, Vertical |
| Width [y] | 18.03 mm |
| Width [y] | 0.71 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.76 | |
| 10 | $ 11.11 | |||
| 25 | $ 10.46 | |||
| 40 | $ 9.80 | |||
| 80 | $ 9.15 | |||
| 230 | $ 8.50 | |||
| 440 | $ 8.33 | |||
| 1000 | $ 8.17 | |||
Description
General part information
OMNI-2 Series
Heat Sink TO-220 Aluminum Board Level, Vertical
