74AUP1G126FX4-7

Active

Diodes Inc

SINGLE BUFFER, 3-STATE, OE HIGH

Search across all available documentation for this part.

Active

Diodes Inc

SINGLE BUFFER, 3-STATE, OE HIGH

Technical Specifications

Parameters and characteristics for this part

Specification	74AUP1G126FX4-7

Current - Output High, Low [custom]	4 mA
Current - Output High, Low [custom]	4 mA
Logic Type	Buffer, Non-Inverting
Mounting Type	Surface Mount
Number of Bits per Element	1
Number of Elements	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	3-State
Package / Case	6-XFDFN

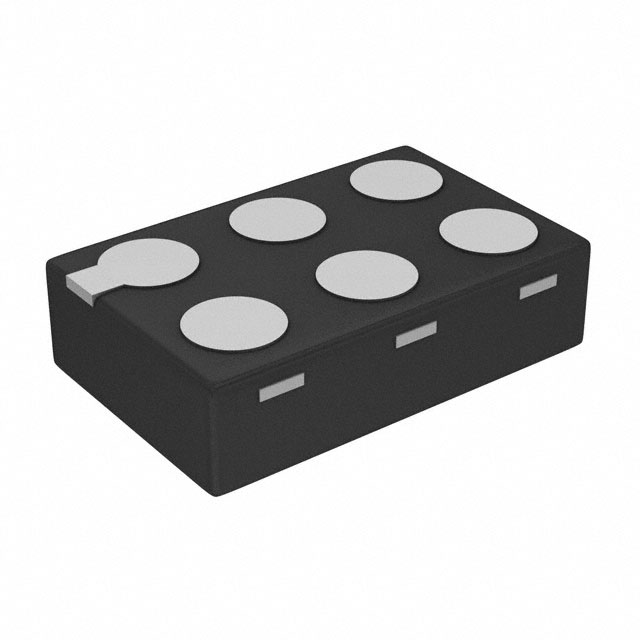

Supplier Device Package	X2-DFN1409-6
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	0.8 V

Single Buffer, 3-State, OE HIGH

Part	Supplier Device Package	Package / Case	Number of Elements	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Logic Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Bits per Element	Operating Temperature [Min]	Operating Temperature [Max]	Output Type
Diodes Inc 74AUP1G126FW4-7	X2-DFN1010-6	6-XFDFN	1	Surface Mount	0.8 V	3.6 V	Buffer Non-Inverting	4 mA	4 mA	1	-40 °C	125 °C	3-State
Diodes Inc 74AUP1G126FX4-7	X2-DFN1409-6	6-XFDFN	1	Surface Mount	0.8 V	3.6 V	Buffer Non-Inverting	4 mA	4 mA	1	-40 °C	125 °C	3-State
Diodes Inc 74AUP1G126FZ4-7	X2-DFN1410-6	6-XFDFN	1	Surface Mount	0.8 V	3.6 V	Buffer Non-Inverting	4 mA	4 mA	1	-40 °C	125 °C	3-State

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TN1.pdf

Technical documentation and resources
