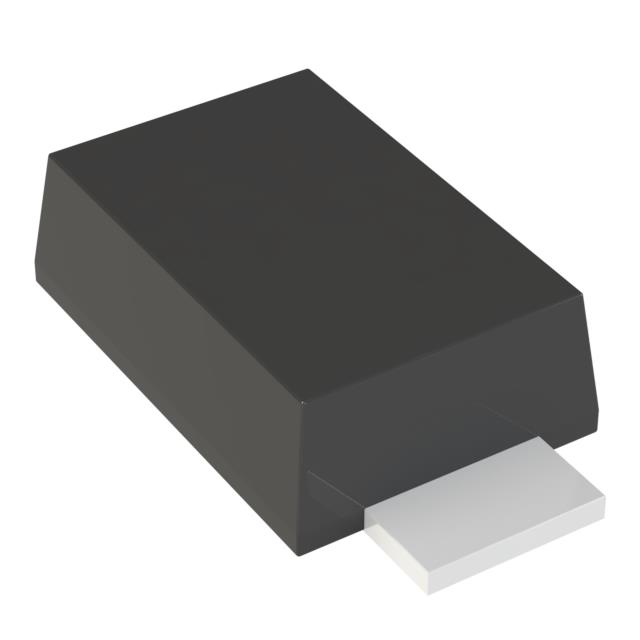

SS2100HE-TP

Micro Commercial Components

INTERFACE

Search across all available documentation for this part.

Micro Commercial Components

INTERFACE

Technical Specifications

Parameters and characteristics for this part

Specification	SS2100HE-TP

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123H
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123HE
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	850 mV

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Current - Average Rectified (Io)	Supplier Device Package	Current - Reverse Leakage @ Vr	Speed	Mounting Type
Micro Commercial Components SS2100HE-TP	100 V	850 mV	SOD-123H	150 °C	-55 °C	Schottky	2 A	SOD-123HE	10 µA	200 mA 500 ns	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.11

General part information

Diode 100 V 2A Surface Mount SOD-123HE

Technical documentation and resources

No documents available
