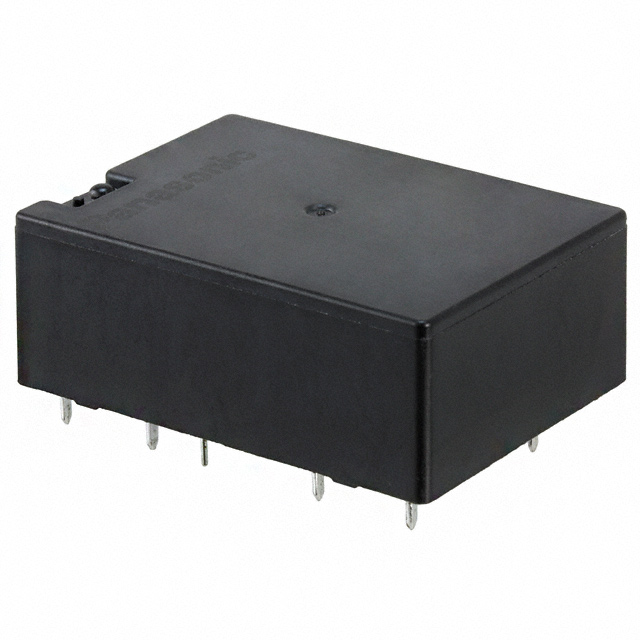

SFY5-DC21V
ActivePanasonic Electric Works
RELAY SAFETY 6PST 6A 21V
Deep-Dive with AI
Search across all available documentation for this part.
SFY5-DC21V
ActivePanasonic Electric Works
RELAY SAFETY 6PST 6A 21V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFY5-DC21V |
|---|---|
| Coil Current | 32 mA |
| Coil Power | 670 mW |
| Coil Resistance | 666 Ohms |
| Coil Voltage | 21 VDC |
| Contact Form | 6PST-5NO/1NC (5 Form A, 1 Form B) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 6 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 15.8 VDC |
| Must Release Voltage | 3.2 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 10 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20 | $ 39.03 | |
Description
General part information
SFY5 Series
RELAY SAFETY 6PST 6A 21V
