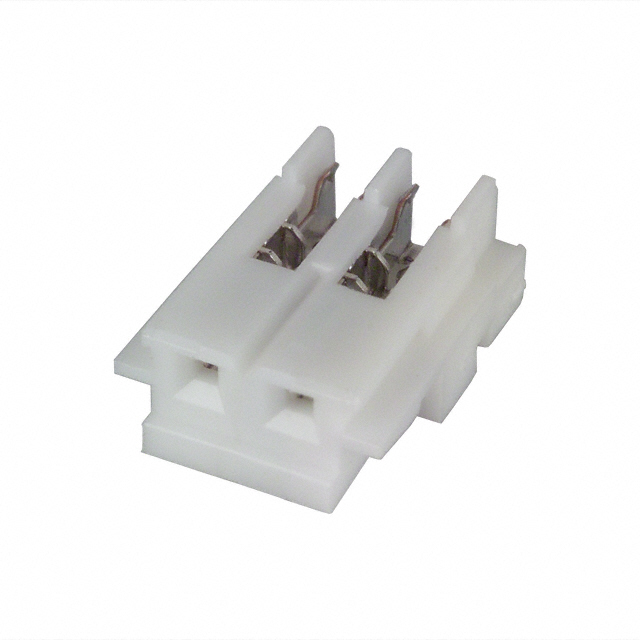

02HR-6S-P-N
ActiveJST Sales America Inc.
CONN RCPT 2POS IDC 26AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsJST Prefix Suffix Chart
02HR-6S-P-N
ActiveJST Sales America Inc.
CONN RCPT 2POS IDC 26AWG TIN
Deep-Dive with AI
DocumentsJST Prefix Suffix Chart
Technical Specifications
Parameters and characteristics for this part
| Specification | 02HR-6S-P-N |
|---|---|
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Fastening Type | Detent Lock |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Wire Gauge | 26 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.18 | |
| 10 | $ 0.14 | |||
| 25 | $ 0.12 | |||
| 50 | $ 0.11 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 3000 | $ 0.07 | |||
Description
General part information
02HR-6S Series
2 Position Rectangular Receptacle Connector IDC Tin 26 AWG
