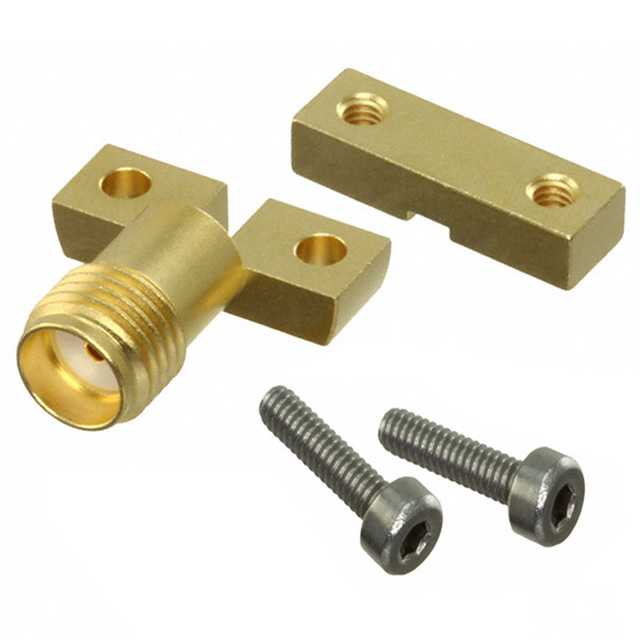

02K243-40ME3

Active

Rosenberger

CONN RPC2.92 JCK ST 50OHM EDGEMT

Search across all available documentation for this part.

Active

Rosenberger

CONN RPC2.92 JCK ST 50OHM EDGEMT

Technical Specifications

Parameters and characteristics for this part

Specification	02K243-40ME3

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	2.92 mm
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware
Frequency - Max [Max]	40 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	2 Screws, 1 Connector, 1 Clamp
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Screw
Voltage Rating	250 VDC

Part	Voltage Rating	Connector Type	Mating Cycles	Housing Color	Body Material	Body Finish	Frequency - Max [Max]	Features	Contact Termination	Dielectric Material	Center Contact Plating	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Impedance	Connector Style	Number of Ports	Mounting Type	Shield Termination
Rosenberger 02K243-40ME3	250 VDC	Female Socket Jack	500	Gold	Brass	Gold	40 GHz	Mounting Hardware	Solder	Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper	85 °C	-40 °C	1 Clamp 1 Connector 2 Screws	50 Ohms	2.92 mm	1	Board Edge End Launch	Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
