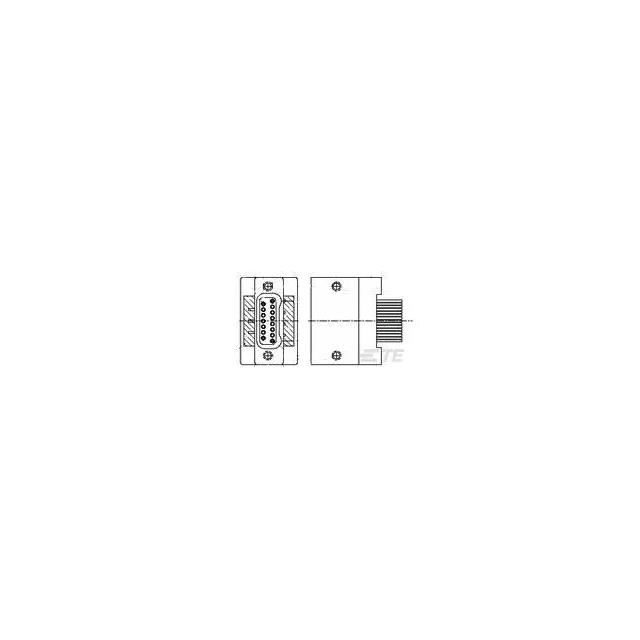

1-1589488-6
ActiveTE Connectivity Aerospace, Defense and Marine
CONN NANO-D RCPT 9POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1589488-6
ActiveTE Connectivity Aerospace, Defense and Marine
CONN NANO-D RCPT 9POS VERT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1589488-6 |
|---|---|
| Color | Natural |
| Connector Style | D-Type, Nano-D |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Tin-Lead |
| Contact Material | Brass |
| Contact Type | Power |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Shell Material, Finish | Nickel Plated, Steel |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 441.55 | |
| 2 | $ 425.34 | |||
| 10 | $ 417.24 | |||
Description
General part information
1589488 Series
9 Position D-Type, Nano-D Receptacle, Female Sockets Connector
