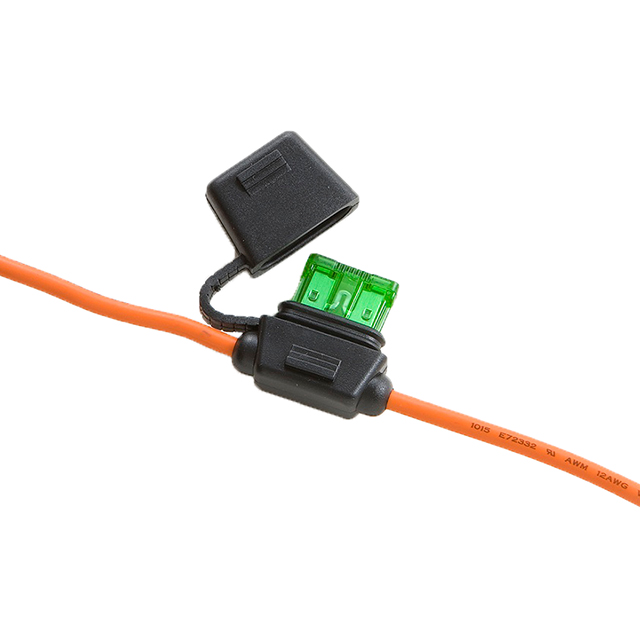

LPR-02B-12OR

Active

OptiFuse

REG. FUSEHOLDER, 30A-12AWG ORG

Search across all available documentation for this part.

Active

OptiFuse

REG. FUSEHOLDER, 30A-12AWG ORG

Technical Specifications

Parameters and characteristics for this part

Specification	LPR-02B-12OR

Contact Material	Brass
Current Rating (Amps)	30 A
For Use With/Related Products	APR, ANR
Fuse Size [x]	19.1 mm
Fuse Size [x]	0.75 "
Fuse Size [y]	5.1 mm
Fuse Size [y]	0.2 in
Fuse Type	Blade
Fuseholder Type	Holder
Mounting Type	Free Hanging (In-Line)
Number of Circuits	1
Termination Style	Wire Leads

Part	Current Rating (Amps)	Number of Circuits	For Use With/Related Products	Termination Style	Contact Material	Fuseholder Type	Mounting Type	Fuse Size [y]	Fuse Size [x]	Fuse Size [y]	Fuse Size [x]	Fuse Type
OptiFuse LPR-02B-12Y	30 A	1	ANR APR	Wire Leads	Brass	Holder	Free Hanging (In-Line)	5.1 mm	19.1 mm	0.2 in	0.75 "	Blade
OptiFuse LPR-02B-12R	30 A	1	ANR APR	Wire Leads	Brass	Holder	Free Hanging (In-Line)	5.1 mm	19.1 mm	0.2 in	0.75 "	Blade
OptiFuse LPR-02B-12OR	30 A	1	ANR APR	Wire Leads	Brass	Holder	Free Hanging (In-Line)	5.1 mm	19.1 mm	0.2 in	0.75 "	Blade
OptiFuse LPR-02B-14Y	20 A	1	ANR APR	Wire Leads	Brass	Holder	Free Hanging (In-Line)	5.1 mm	19.1 mm	0.2 in	0.75 "	Blade
OptiFuse LPR-02B-16B	30 A	1	ANR APR	Wire Leads	Brass	Holder	Free Hanging (In-Line)	5.1 mm	19.1 mm	0.2 in	0.75 "	Blade

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fuse Holder 30 A 58V 1 Circuit Blade Free Hanging (In-Line)
