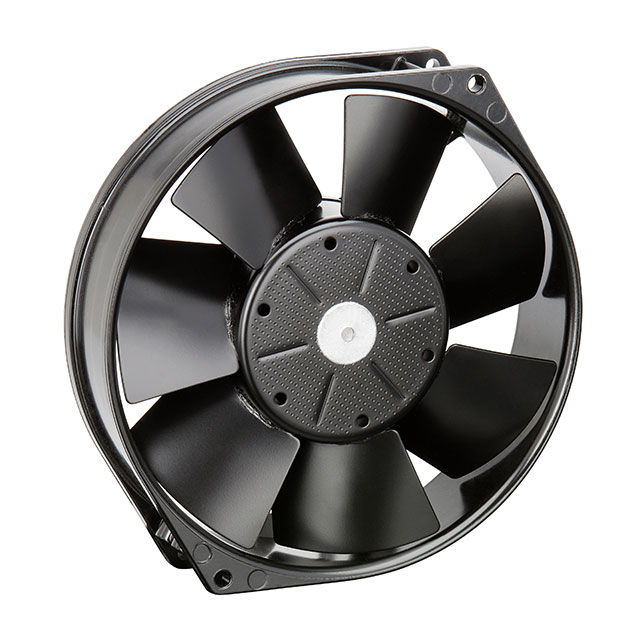

7114N - 7100N_Series

7114N

Active
ebm-papst Inc.

DC AXIAL FAN, 24 V, CIRCULAR, 150 MM, 38 MM, BALL BEARING, 211.9 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetCompact Fans for AC, DC, and EC Catalog+2
7114N - 7100N_Series

7114N

Active
ebm-papst Inc.

DC AXIAL FAN, 24 V, CIRCULAR, 150 MM, 38 MM, BALL BEARING, 211.9 CFM

Deep-Dive with AI

DocumentsDatasheetCompact Fans for AC, DC, and EC Catalog+2

Technical Specifications

Parameters and characteristics for this part

Specification7114N
Air Flow212 CFM
Air Flow5.94 m³/min
Approval AgencyUL, CE, VDE, CSA
Bearing TypeBall
Current Rating (Amps)600 mA
Fan TypeTubeaxial
Lifetime @ Temp.80000 Hrs
Material - BladeSteel
Material - FrameAluminum
Noise55 dB
Operating Temperature [Max] [custom]72 °C
Operating Temperature [Max] [custom]162 °F
Operating Temperature [Min] [custom]-13 °F
Operating Temperature [Min] [custom]-25 °C
Power (Watts)12 W
RPM2850 RPM
Size / DimensionRound
Size / Dimension [diameter]150 mm
Termination2 Wire Leads
Voltage - Rated24 VDC
Voltage Range [Max]30 V
Voltage Range [Min]12 VDC
Weight635 g
Weight [custom]1.4 lbs
Width [y]38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 88.27
10$ 78.69
25$ 75.18
50$ 72.62
100$ 70.14
NewarkEach 1$ 100.31
5$ 97.80
10$ 95.29
25$ 90.28
50$ 85.26
100$ 80.25

Description

General part information

7114 Series

The 7114N is a 24VDC standard or basic speed Axial Fan with speed signal, ball bearing and wire leaded power connection. Die-cast aluminium housing and sheet steel coated in black impeller. Left direction of rotation looking at rotor, inlet over bars direction of air flow, single strands 22AWG, TR 64, bared and tin-plated leads. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
