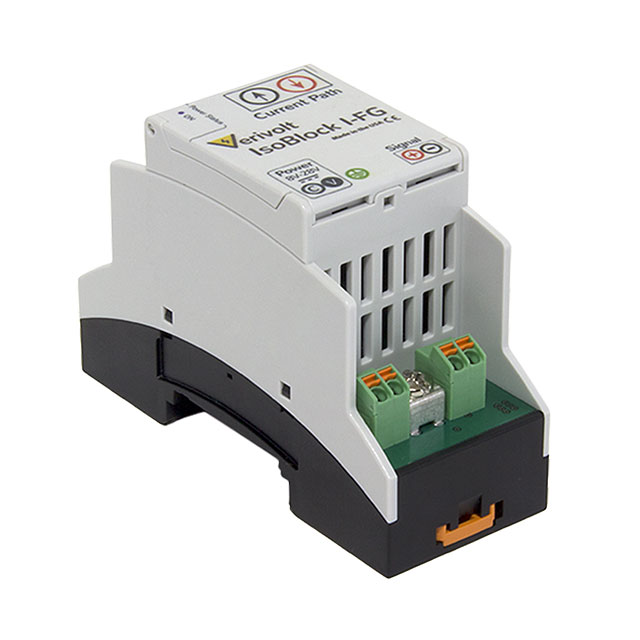

ISOBLOCK I-FG-1C (50A 10V)

Active

Verivolt LLC

TRANSDUCER CURRENT 9-28VDC

Search across all available documentation for this part.

Active

Verivolt LLC

TRANSDUCER CURRENT 9-28VDC

Technical Specifications

Parameters and characteristics for this part

Specification	ISOBLOCK I-FG-1C (50A 10V)

Accuracy	0.2 %
Input Range [Max]	50 A
Input Range [Min]	0 A
Isolation	1200 V
Mounting Type	DIN Rail
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output	10 V
Response Time	5 µs
Termination Style	Spring Terminal, Screw Terminal
Type	Current Transducer
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	9 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Accuracy	Output	Response Time	Input Range [Min]	Input Range [Max]	Input Range
Verivolt LLC ISOBLOCK I-ST-1C (30A 10V)	28 V	9 V	Current Transducer	2000 V	70 °C	-25 °C	DIN Rail	Screw Terminal Spring Terminal	0.2 %	10 V	2.8 µs
Verivolt LLC ISOBLOCK I-ST-1C (20A 10V)	28 V	9 V	Current Transducer	2000 V	70 °C	-25 °C	DIN Rail	Screw Terminal Spring Terminal	0.2 %	10 V	2.8 µs	0 A	20 A
Verivolt LLC ISOBLOCK I-FG-1C (50A 10V)	28 V	9 V	Current Transducer	1200 V	70 °C	-25 °C	DIN Rail	Screw Terminal Spring Terminal	0.2 %	10 V	5 µs	0 A	50 A
Verivolt LLC ISOBLOCK I-FG-1C (15A 10V)	28 V	9 V	Current Transducer	1200 V	70 °C	-25 °C	DIN Rail	Spring Terminal	0.2 %	10 V	5 µs	0 A	15 A
Verivolt LLC ISOBLOCK I-ST-1C (200MV 10V)	28 V	9 V	Current Transducer	2000 V	70 °C	-25 °C	DIN Rail	Screw Terminal Spring Terminal	0.2 %	10 V	2.8 µs			200 mV
Verivolt LLC ISOBLOCK I-FG-4C (15A 10V)	28 V	9 V	Current Transducer	1200 V	70 °C	-25 °C	DIN Rail	Spring Terminal	0.2 %	10 V	5 µs	0 A	15 A
Verivolt LLC ISOBLOCK I-FG-1C (6A 5V)	28 V	9 V	Current Transducer	1200 V	70 °C	-25 °C	DIN Rail	Spring Terminal	0.2 %	5 V	5 µs	0 A	6 A
Verivolt LLC ISOBLOCK I-FG-1C (25A 5V)	28 V	9 V	Current Transducer	1200 V	70 °C	-25 °C	DIN Rail	Spring Terminal	0.2 %	5 V	5 µs	0 A	25 A
Verivolt LLC ISOBLOCK I-FG-4C (15A 5V)	28 V	9 V	Current Transducer	1200 V	70 °C	-25 °C	DIN Rail	Spring Terminal	0.2 %	5 V	5 µs	0 A	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Current Transducer 0 ~ 50A Input ±10V Output 9 ~ 28VDC DIN Rail
