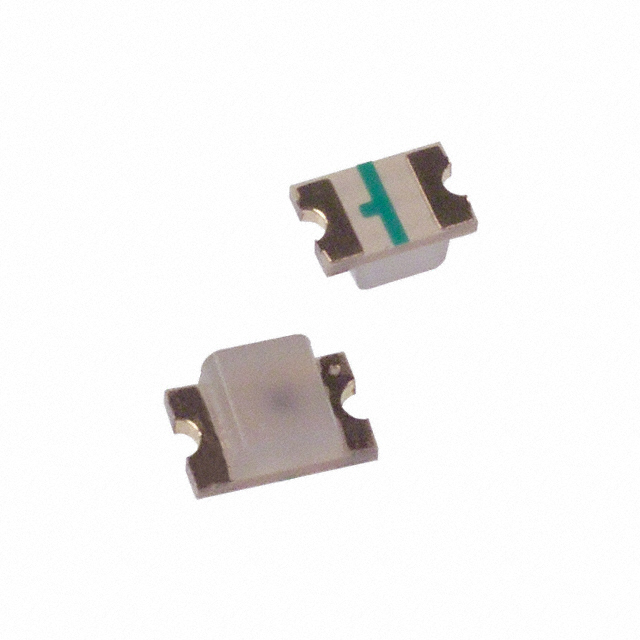

HSMQ-C177
ActiveBroadcom Limited
LED GREEN DIFFUSED CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
HSMQ-C177
ActiveBroadcom Limited
LED GREEN DIFFUSED CHIP SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HSMQ-C177 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.4 mm |
| Lens Color | White |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1.25 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 145 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
| Wavelength - Dominant [custom] | 527 nm |
| Wavelength - Peak | 520 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.37 | |
| 10 | $ 0.85 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.46 | |||
| 2000 | $ 0.43 | |||
| Digi-Reel® | 1 | $ 1.37 | ||
| 10 | $ 0.85 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.46 | |||
| 2000 | $ 0.43 | |||
| Tape & Reel (TR) | 4000 | $ 0.41 | ||
| 8000 | $ 0.39 | |||
| 12000 | $ 0.38 | |||
| 20000 | $ 0.38 | |||
Description
General part information
HSMQ-C177 Series
Green 527nm LED Indication - Discrete 3.4V 0805 (2012 Metric)
Documents
Technical documentation and resources
No documents available
