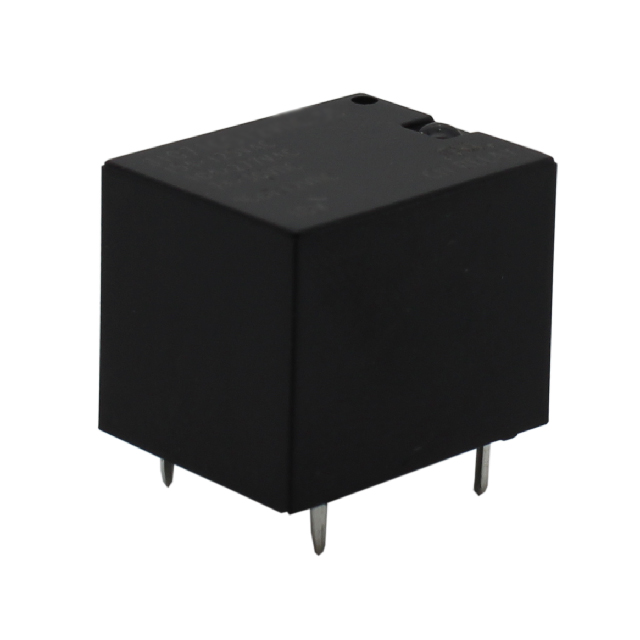

J1071CS12VDC.36

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPDT 15A 30VDC

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPDT 15A 30VDC

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Coil Type	Operate Time	Termination Style	Contact Material	Must Release Voltage	Coil Resistance	Load - Max Switching	Coil Current	Switching Voltage	Coil Insulation	Contact Rating (Current)	Relay Type	Release Time	Must Operate Voltage	Coil Voltage	Seal Rating
CIT Relay and Switch J1071CS12VDC.36	Through Hole	125 °C	-40 °C	SPDT (1 Form C)	Non Latching	10 ms	PC Pin	Silver Tin Oxide (AgSnO)	1.2 VDC	400 Ohms	450 W 1875 VA	30 mA	30 VDC 125 VAC	Class F	15 A	General Purpose	10 ms	9 VDC	12 VDC	Sealed - Fully
CIT Relay and Switch J1071CS5VDC.36	Through Hole	125 °C	-40 °C	SPDT (1 Form C)	Non Latching	10 ms	PC Pin	Silver Tin Oxide (AgSnO)	0.5 VDC	69 Ohms	450 W 1875 VA	72.5 mA	30 VDC 125 VAC	Class F	15 A	General Purpose	10 ms	3.75 VDC	5 VDC	Sealed - Fully
CIT Relay and Switch J1071CS18VDC.36	Through Hole	125 °C	-40 °C	SPDT (1 Form C)	Non Latching	10 ms	PC Pin	Silver Tin Oxide (AgSnO)	1.8 VDC	900 Ohms	450 W 1875 VA	20 mA	30 VDC 125 VAC	Class F	15 A	General Purpose	10 ms	13.5 VDC	18 VDC	Sealed - Fully
CIT Relay and Switch J1071CS3VDC.36	Through Hole	125 °C	-40 °C	SPDT (1 Form C)	Non Latching	10 ms	PC Pin	Silver Tin Oxide (AgSnO)	0.3 VDC	25 Ohms	450 W 1875 VA	120 mA	30 VDC 125 VAC	Class F	15 A	General Purpose	10 ms	2.25 VDC		Sealed - Fully

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
