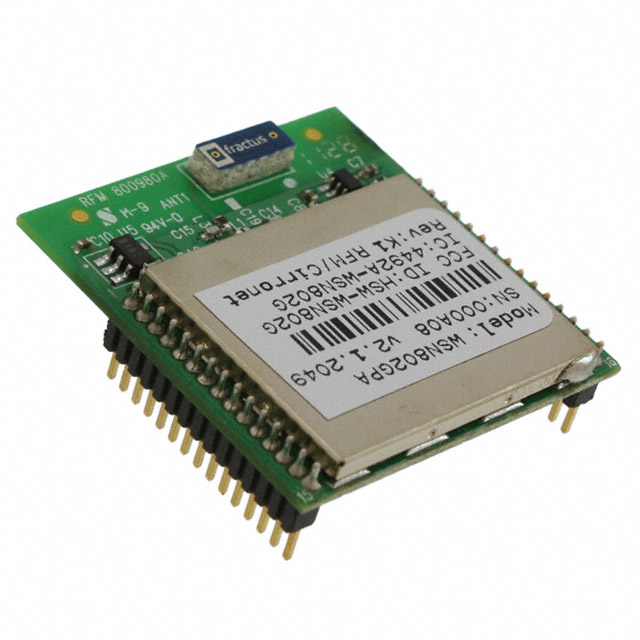

WSN802GPA

Obsolete

Murata Power Solutions Inc.

RF TXRX MOD WIFI CHIP TH

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

RF TXRX MOD WIFI CHIP TH

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Sensitivity	Power - Output	Current - Receiving	Package / Case	Modulation	Current - Transmitting	RF Family/Standard	Mounting Type	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]	Protocol	Serial Interfaces	Antenna Type
Murata Power Solutions Inc. WSN802GPA	85 °C	-40 °C	2.4 GHz	-92 dBm	10 dBm	150 mA	Module	BPSK CCK DSSS QPSK	200 mA	WiFi	Through Hole	11 Mbps	3.6 V	3 V	802.11b/g	SPI UART	Integrated Chip
Murata Power Solutions Inc. WSN802GCA-E	85 °C	-40 °C	2.4 GHz	-92 dBm	10 dBm	150 mA	Module	BPSK CCK DSSS QPSK	200 mA	WiFi	Surface Mount	11 Mbps	3.6 V	3 V	802.11b/g	SPI UART	Integrated Chip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

WiFi 802.11b/g Transceiver Module 2.4GHz Integrated, Chip Through Hole
