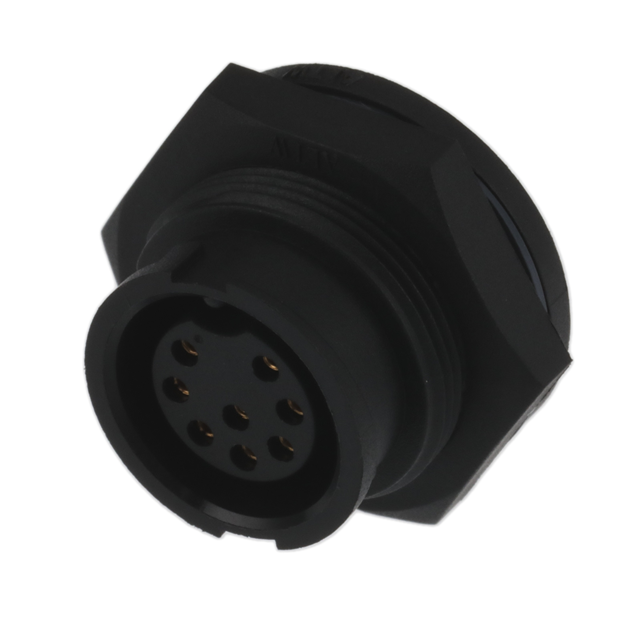

ACD-08PMFS-LC7001

Active

Amphenol LTW

CONN RCPT FMALE 8P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 8P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	ACD-08PMFS-LC7001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Voltage Rating	300 VDC

Part	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Connector Type	Color	Number of Positions	Current Rating (Amps)	Shell Size - Insert	Contact Material	Mounting Feature	Insert Material	Shell Material	Voltage Rating	Primary Material	Contact Finish - Mating	Shielding	Fastening Type	Shell Finish	Material Flammability Rating
Amphenol LTW ACD-08PMFS-LC7001	Keyed	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Black	8	5 A	C	Copper Alloy	Bulkhead - Front Side Nut	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)	300 VDC	Plastic	Gold	Unshielded	Bayonet Lock
Amphenol LTW ACD-08PMFS-SC7001	Keyed	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Black	8	5 A	C	Copper Alloy	Bulkhead - Front Side Nut	Polyamide (PA) Nylon Glass Filled		300 VDC	Plastic	Gold	Unshielded		Nickel	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder Cup
