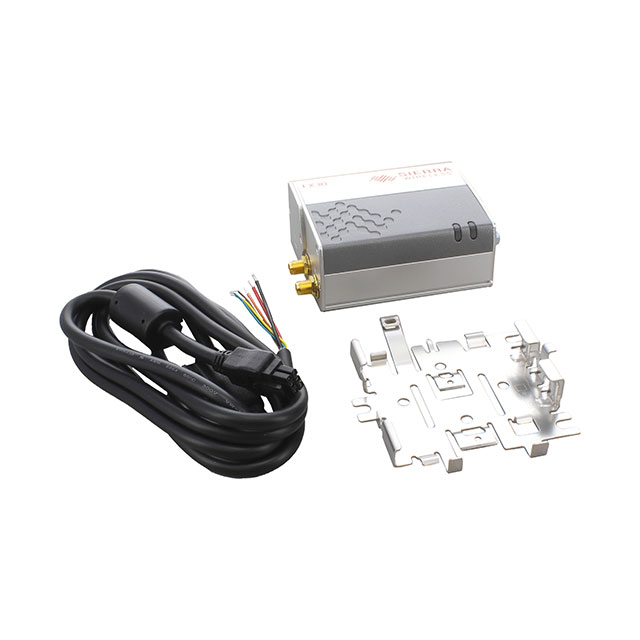

FX30S_1104541

Obsolete

Semtech Corporation

GATEWAY EDGE GPRS GSM HSPA+

Search across all available documentation for this part.

Obsolete

Semtech Corporation

GATEWAY EDGE GPRS GSM HSPA+

Technical Specifications

Parameters and characteristics for this part

Specification	FX30S_1104541

Applications	General Purpose
Data Rate (Max)	57 Mbps
Features	Legato, Linux, Programmable
Frequency	1900 MHz, 1800 MHz, 900 MHz, 850 MHz
Function	Gateway
Interface	RS-232, RS-485, USB, UART, Serial, Analog, DB9, Digital
Modulation or Protocol	Cellular, GPRS, GSM, HSPA+, EDGE
Voltage - Supply [Max]	32 VDC
Voltage - Supply [Min]	4.75 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Rate (Max)	Applications	Interface	Modulation or Protocol	Frequency	Features	Function
Semtech Corporation FX30S_1104541	4.75 V	32 VDC	57 Mbps	General Purpose	Analog DB9 Digital RS-232 RS-485 Serial UART USB	Cellular EDGE GPRS GSM HSPA+	850 MHz 900 MHz 1800 MHz 1900 MHz	Legato Linux Programmable	Gateway
Semtech Corporation 1104542	4.75 V	32 VDC		General Purpose	Analog DB9 Digital RS-232 RS-485	Cellular EDGE GPRS GSM LTE	850 MHz 900 MHz 1800 MHz 1900 MHz	Legato Linux Programmable	Gateway

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3G/2G Cellular, EDGE, GPRS, GSM, HSPA+ Gateway AT&T, Verizon Analog, Digital, Serial, RS-232, RS-485, DB9, UART, USB

Technical documentation and resources

No documents available
