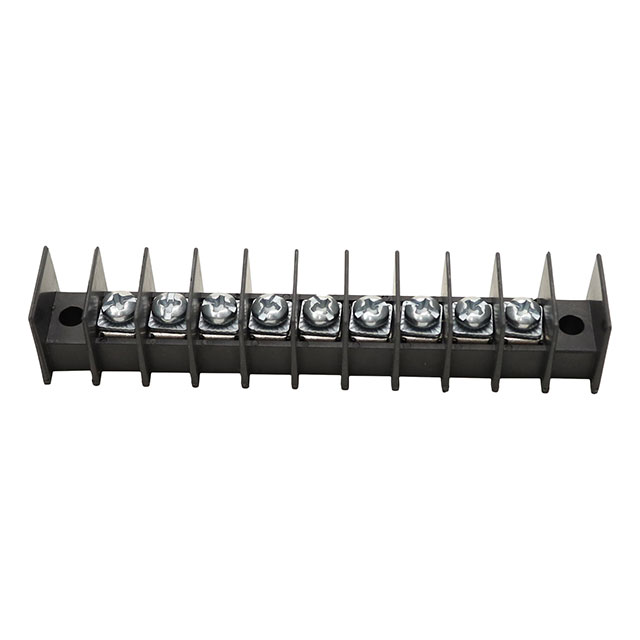

325001-09-0

Active

Curtis Industries

CONN BARRIER STRIP 9CIRC 0.325"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTerminal Blocks Catalog Datasheet

325001-09-0

Active

Curtis Industries

CONN BARRIER STRIP 9CIRC 0.325"

Deep-Dive with AI

DocumentsTerminal Blocks Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325001-09-0

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Current Rating (Amps)	15 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Rows	1
Number of Wire Entries	9
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

325001 Series

Part	Current Rating (Amps)	Number of Circuits	Bottom Termination	Features	Operating Temperature	Pitch [x]	Pitch [x]	Mounting Type	Terminal Block Type	Material Flammability Rating	Number of Wire Entries	Terminal Screw Material	Number of Rows	Material - Insulation	Voltage Rating	Barrier Type	Top Termination	Wire Gauge [Min]	Wire Gauge [Max]
Curtis Industries 325001-06-0	15 A	6	Closed	Flange	105 C	8.26 mm	0.325 in	Chassis Panel	Barrier Block	UL94 V-0	6	Steel	1	Polypropylene (PP)	300 VDC	2 Wall (Dual)	Screws	14 AWG	22 AWG
Curtis Industries 325001-09-0	15 A		Closed	Flange	105 C	8.26 mm	0.325 in	Chassis Panel	Barrier Block	UL94 V-0	9	Steel	1	Polypropylene (PP)	300 VDC	2 Wall (Dual)	Screws	14 AWG	22 AWG
Curtis Industries 325001-24-0	15 A	24	Closed	Flange	105 C	8.26 mm	0.325 in	Chassis Panel	Barrier Block	UL94 V-0		Steel	1	Polypropylene (PP)	300 VDC	2 Wall (Dual)	Screws	14 AWG	22 AWG
Curtis Industries 325001-21-0	15 A	21	Closed	Flange	105 C	8.26 mm	0.325 in	Chassis Panel	Barrier Block	UL94 V-0	21	Steel	1	Polypropylene (PP)	300 VDC	2 Wall (Dual)	Screws	14 AWG	22 AWG
Curtis Industries 325001-15-0	15 A	15	Closed	Flange	105 C	8.26 mm	0.325 in	Chassis Panel	Barrier Block	UL94 V-0	15	Steel	1	Polypropylene (PP)	300 VDC	2 Wall (Dual)	Screws	14 AWG	22 AWG
Curtis Industries 325001-18-0	15 A	18	Closed	Flange	105 C	8.26 mm	0.325 in	Chassis Panel	Barrier Block	UL94 V-0	18	Steel	1	Polypropylene (PP)	300 VDC	2 Wall (Dual)	Screws	14 AWG	22 AWG
Curtis Industries 325001-14-0	15 A	14	Closed	Flange	105 C	8.26 mm	0.325 in	Chassis Panel	Barrier Block	UL94 V-0	14	Steel	1	Polypropylene (PP)	300 VDC	2 Wall (Dual)	Screws	14 AWG	22 AWG
Curtis Industries 325001-19-0	15 A	19	Closed	Flange	105 C	8.26 mm	0.325 in	Chassis Panel	Barrier Block	UL94 V-0	19	Steel	1	Polypropylene (PP)	300 VDC	2 Wall (Dual)	Screws	14 AWG	22 AWG
Curtis Industries 325001-03-0	15 A	3	Closed	Flange	105 C	8.26 mm	0.325 in	Chassis Panel	Barrier Block	UL94 V-0	3	Steel	1	Polypropylene (PP)	300 VDC	2 Wall (Dual)	Screws	14 AWG	22 AWG
Curtis Industries 325001-07-0	15 A	7	Closed	Flange	105 C	8.26 mm	0.325 in	Chassis Panel	Barrier Block	UL94 V-0	7	Steel	1	Polypropylene (PP)	300 VDC	2 Wall (Dual)	Screws	14 AWG	22 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.02
		10	$ 3.83
		30	$ 3.59
		50	$ 3.19
		100	$ 3.12
		250	$ 3.05

Description

General part information

325001 Series

9 Circuit 0.325" (8.26mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Terminal Blocks Catalog

Datasheet
