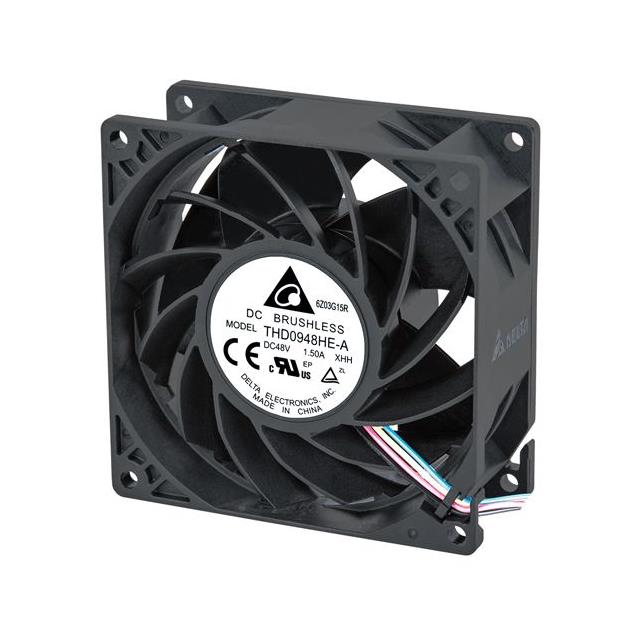

THD0948HE-A
ActiveDelta Electronics
FAN AXIAL 92X38MM 48VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
THD0948HE-A
ActiveDelta Electronics
FAN AXIAL 92X38MM 48VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | THD0948HE-A |
|---|---|
| Air Flow | 5.11 m³/min |
| Air Flow | 182.4 CFM |
| Approval Agency | cURus, CE, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.1 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 71 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 52.8 W |
| RPM | 13500 RPM |
| Static Pressure | 3.435 in H2O |
| Static Pressure | 855.6 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 75 VDC |
| Voltage Range [Min] | 36 VDC |
| Weight | 216.36 g |
| Weight | 0.477 lb |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.01 | |
| 10 | $ 41.49 | |||
| 48 | $ 36.77 | |||
Description
General part information
THD0948 Series
Fan Tubeaxial 48VDC Square - 92mm L x 92mm H Ball 182.4 CFM (5.11m³/min) 4 Wire Leads
