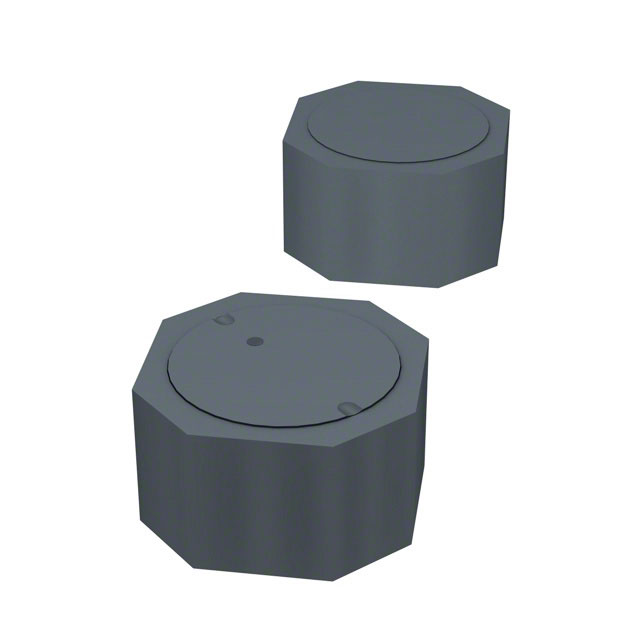

SRU5028A-101Y

Active

Bourns Inc.

IND5.2X5.2X2.8MM,100UH30%0.47A,SHDSMD /TAPE & REEL - 7" REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

SRU5028A-101Y

Active

Bourns Inc.

IND5.2X5.2X2.8MM,100UH30%0.47A,SHDSMD /TAPE & REEL - 7" REEL

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRU5028A-101Y

Current - Saturation (Isat)	420 mA
Current Rating (Amps)	470 mA
DC Resistance (DCR) [Max]	800 mOhm
Frequency - Self Resonant	8 MHz
Height - Seated (Max)	3 mm
Height - Seated (Max) [Max]	0.118 in
Inductance	100 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	15, 796 kHz
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	0.205 in
Size / Dimension [x]	5.2 mm
Size / Dimension [y]	0.205 "
Size / Dimension [y]	5.2 mm
Tolerance	30 %
Type	Wirewound, Drum Core

SRU5028A Series

Part	Height - Seated (Max)	Height - Seated (Max) [Max]	Tolerance	Inductance	DC Resistance (DCR) [Max]	Current Rating (Amps)	Q @ Freq	Inductance Frequency - Test	Material - Core	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Shielding	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Frequency - Self Resonant	Current - Saturation (Isat)	Type	Ratings	DC Resistance (DCR)
Bourns Inc. SRU5028A-101Y	3 mm	0.118 in	30 %	100 µH	800 mOhm	470 mA	15 796 kHz	100 kHz	Ferrite	0.205 "	5.2 mm	0.205 in	5.2 mm	Shielded	Surface Mount	125 °C	-40 °C	Nonstandard	8 MHz	420 mA	Drum Core Wirewound	AEC-Q200
Bourns Inc. SRU5028A-220Y	3 mm	0.118 in	30 %	22 µH		950 mA	2.52 MHz 15	100 kHz	Ferrite	0.205 "	5.2 mm	0.205 in	5.2 mm	Shielded	Surface Mount	125 °C	-40 °C	Nonstandard	18 MHz	850 mA	Drum Core Wirewound	AEC-Q200	210 mOhm
Bourns Inc. SRU5028A-680Y	3 mm	0.118 in	30 %	68 µH	550 mOhm	0.56 A	2.52 MHz 13	100 kHz	Ferrite	0.205 "	5.2 mm	0.205 in	5.2 mm	Shielded	Surface Mount	125 °C	-40 °C	Nonstandard	10 MHz	460 mA	Drum Core Wirewound	AEC-Q200
Bourns Inc. SRU5028A-1R2Y	3 mm	0.118 in	30 %	1.2 µH		3.5 A	7.96 MHz 10	100 kHz	Ferrite	0.205 "	5.2 mm	0.205 in	5.2 mm	Shielded	Surface Mount	125 °C	-40 °C	Nonstandard	200 MHz	3.4 A	Drum Core Wirewound	AEC-Q200
Bourns Inc. SRU5028A-6R8Y	3 mm	0.118 in	30 %	6.8 µH	56 mOhm	2 A	7.96 MHz 10	100 kHz	Ferrite	0.205 "	5.2 mm	0.205 in	5.2 mm	Shielded	Surface Mount	125 °C	-40 °C	Nonstandard	45 MHz	1.55 A	Drum Core Wirewound	AEC-Q200
Bourns Inc. SRU5028A-2R2Y	3 mm	0.118 in	30 %	2.2 µH		3.2 A	7.96 MHz 10	100 kHz	Ferrite	0.205 "	5.2 mm	0.205 in	5.2 mm	Shielded	Surface Mount	125 °C	-40 °C	Nonstandard	130 MHz	2.5 A	Drum Core Wirewound	AEC-Q200	27 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.64
		10	$ 0.54
		25	$ 0.49
		50	$ 0.47
		100	$ 0.39
		250	$ 0.36
	Digi-Reel®	1	$ 0.64
		10	$ 0.54
		25	$ 0.49
		50	$ 0.47
		100	$ 0.39
		250	$ 0.36
	Tape & Reel (TR)	600	$ 0.35
Newark	Each (Supplied on Cut Tape)	500	$ 0.55

Description

General part information

SRU5028A Series

100 µH Shielded Drum Core, Wirewound Inductor 470 mA 800mOhm Max Nonstandard
