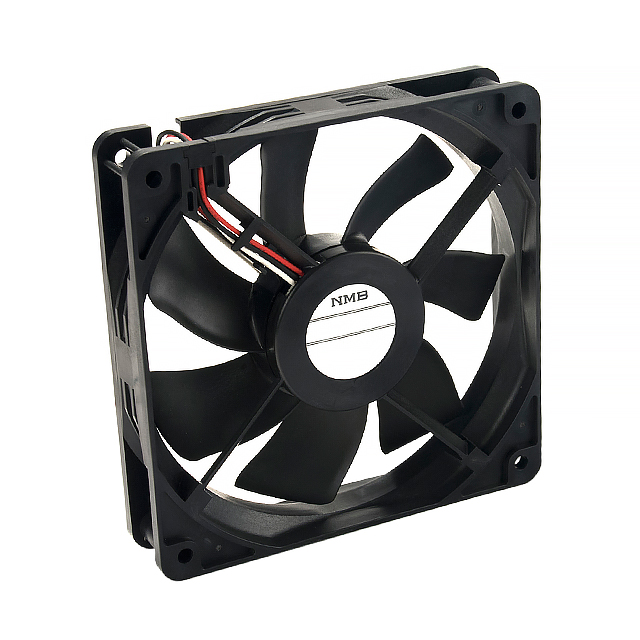

11925SA-24M-EA-00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFan Part Numbering Guide Datasheet

11925SA-24M-EA-00

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 119X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsFan Part Numbering Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11925SA-24M-EA-00

Air Flow	79.5 CFM
Air Flow	2.23 m³/min
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	33.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.92 W
RPM	2200 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	12 VDC
Width [y]	25 mm

11925SA Series

Part	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Lifetime @ Temp.	Power (Watts)	Bearing Type	Approval Agency	Features	Current Rating (Amps)	Material - Blade	RPM	Noise	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Termination	Voltage - Rated	Air Flow	Air Flow	Width [y]
NMB TECHNOLOGIES 11925SA-12R-EUD-1	-10 °C	-10 °C	60 °C	60 °C	119 mm	119 mm	89.6 Pa	0.36 in H2O	40000 Hrs	7.44 W	Ball	CE cULus VDE	Auto Restart PWM Control Speed Sensor (Tach)	0.62 A	Plastic	3500 RPM	47 dB	Plastic	13.2 VDC	7 V	Tubeaxial	4 Wire Leads	12 VDC	3.59 mł/min	128.2 CFM	25 mm
NMB TECHNOLOGIES 11925SA-24Q-AL-00	-10 °C	-10 °C	70 °C	70 °C	119 mm	119 mm	72.2 Pa	0.29 in H2O	40000 Hrs	4.8 W	Ball		Locked Rotor Sensor	0.2 A	Plastic	3100 RPM	44 dB	Plastic	27.6 VDC	12 VDC	Tubeaxial	3 Wire Leads	24 VDC			25 mm
NMB TECHNOLOGIES 11925SA-12N-EA-00	-10 °C	-10 °C	70 °C	70 °C	119 mm	119 mm	47.3 Pa	0.19 in H2O	40000 Hrs	2.88 W	Ball			0.24 A	Plastic	2500 RPM	37 dB	Plastic	13.8 VDC	7 V	Tubeaxial	2 Wire Leads	12 VDC	2.55 mł/min	91 CFM	25 mm
NMB TECHNOLOGIES 11925SA-24M-AA-00	-10 °C	-10 °C	70 °C	70 °C	119 mm	119 mm			40000 Hrs	1.92 W	Ball				Plastic	2200 RPM	33.5 dB(A)	Plastic	27.6 VDC	12 VDC	Tubeaxial	2 Wire Leads	24 VDC	2.23 m³/min	79.5 CFM	25 mm
NMB TECHNOLOGIES 11925SA-24M-EA-00	-10 °C	-10 °C	70 °C	70 °C	119 mm	119 mm			40000 Hrs	1.92 W	Ball				Plastic	2200 RPM	33.5 dB(A)	Plastic	27.6 VDC	12 VDC	Tubeaxial	2 Wire Leads	24 VDC	2.23 m³/min	79.5 CFM	25 mm
NMB TECHNOLOGIES 11925SA-24L-EA-00	-10 °C	-10 °C	70 °C	70 °C	119 mm	119 mm	27.4 Pa	0.11 in H2O	40000 Hrs	1.44 W	Ball			60 mA	Plastic	1900 RPM		Plastic	27.6 VDC	12 VDC	Tubeaxial	2 Wire Leads	24 VDC	1.88 m³/min	67.1 CFM	25 mm
NMB TECHNOLOGIES 11925SA-24J-EA-00	-10 °C	-10 °C	70 °C	70 °C	119 mm	119 mm	14.9 Pa	0.06 in H2O	40000 Hrs	720 mW	Ball			30 mA	Plastic	1300 RPM	20.5 dB(A)	Plastic	27.6 VDC	12 VDC	Tubeaxial	2 Wire Leads	24 VDC	1.31 mł/min	46.9 CFM	25 mm
NMB TECHNOLOGIES 11925SA-12L-EA-00	-10 °C	-10 °C	70 °C	70 °C	119 mm	119 mm	27.4 Pa	0.11 in H2O	40000 Hrs	1.56 W	Ball				Plastic	1900 RPM		Plastic	13.8 VDC	7 V	Tubeaxial	2 Wire Leads	12 VDC	1.88 m³/min	67.1 CFM	25 mm
NMB TECHNOLOGIES 11925SA-12N-AL-00	-10 °C	-10 °C	70 °C	70 °C	119 mm	119 mm	47.3 Pa	0.19 in H2O	40000 Hrs	2.88 W	Ball		Locked Rotor Sensor	0.24 A	Plastic	2500 RPM	37 dB	Plastic	13.8 VDC	7 V	Tubeaxial	3 Wire Leads	12 VDC	2.55 mł/min	91 CFM	25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

11925SA Series

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 79.5 CFM (2.23m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Fan Part Numbering Guide

Datasheet
