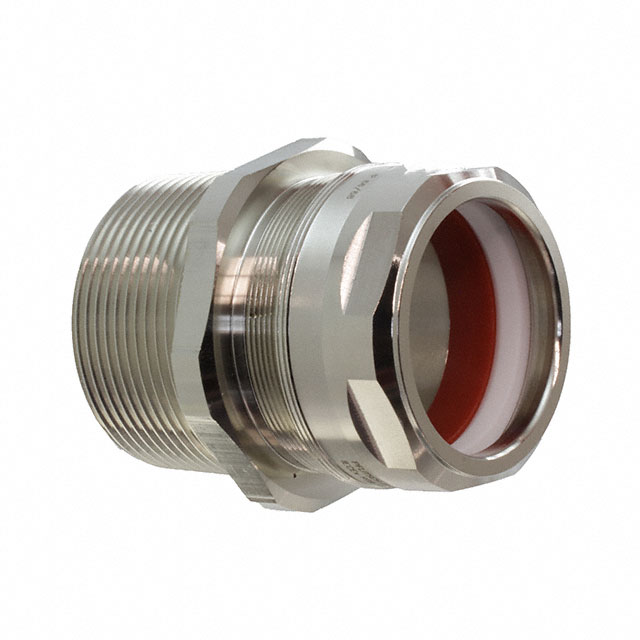

LEX3212MSHTS

Active

Pflitsch

CABLE GLAND 44-56MM 2 1/2" NPT

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 44-56MM 2 1/2" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	LEX3212MSHTS

Color	Silver
Ingress Protection	IP66/IP68
Material	Brass, Nickel Plated
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-60 °C
Outside Cable Diameter (Max)	56 mm
Outside Cable Diameter (Max) [Max] [diameter]	2.205 in
Outside Cable Diameter (Min) [Min] [diameter]	44 mm
Outside Cable Diameter (Min) [Min] [diameter]	1.732 in
Thread Length	40 mm
Thread Length	1.575 in
Thread Size	2 1/2" NPT
Type	Cable Gland

Part	Material	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Color	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Thread Length	Thread Length	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max] [diameter]
Pflitsch LEX3212MSHTS	Brass Nickel Plated	2 1/2" NPT	130 °C	-60 °C	Silver	Cable Gland	44 mm	1.732 in	IP66/IP68	40 mm	1.575 in	56 mm	2.205 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated 2 1/2" NPT Silver
