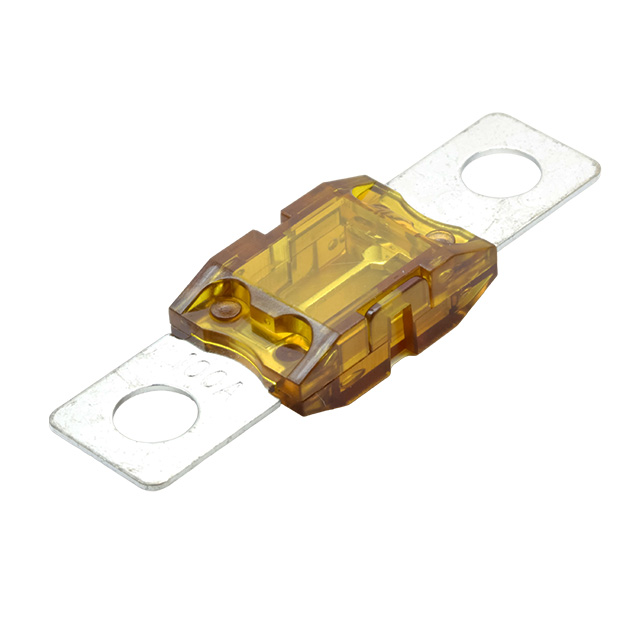

MGGA-100A

Active

OptiFuse

32V 1KA 100A AUTOMOTIVE FUSES ROHS

Search across all available documentation for this part.

Active

OptiFuse

32V 1KA 100A AUTOMOTIVE FUSES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	MGGA-100A

Approval Agency	ISO
Breaking Capacity @ Rated Voltage	1 kA
Color	Yellow
Current Rating (Amps)	100 A
DC Cold Resistance	0.00055 Ohms
Fuse Type	Automotive
Melting I˛t	31
Mounting Type	Bolt Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Auto Link
Response Time	Slow Blow
Size / Dimension [x]	1.15 "
Size / Dimension [x]	29.2 mm
Size / Dimension [y]	0.748 in
Size / Dimension [y]	19 mm
Size / Dimension [z]	0.37 in
Size / Dimension [z]	9.4 mm
Voltage Rating - DC	32 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Color	Voltage Rating - DC	Package / Case	Breaking Capacity @ Rated Voltage	Melting I˛t	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current Rating (Amps)	Response Time	Fuse Type	Mounting Type	DC Cold Resistance	Approval Agency
OptiFuse MGGA-125A	125 °C	-40 °C	Green	32 V	Auto Link	1 kA	57.8	0.748 in	0.37 in	1.15 "	29.2 mm	9.4 mm	19 mm	125 A	Slow Blow	Automotive	Bolt Mount	0.43 mOhms	ISO
OptiFuse MGGA-225A	125 °C	-40 °C	Tan	32 V	Auto Link	1 kA	257000	0.748 in	0.37 in	1.15 "	29.2 mm	9.4 mm	19 mm	225 A	Slow Blow	Automotive	Bolt Mount	0.00023 Ohms	ISO
OptiFuse MGGA-100A	125 °C	-40 °C	Yellow	32 V	Auto Link	1 kA	31	0.748 in	0.37 in	1.15 "	29.2 mm	9.4 mm	19 mm	100 A	Slow Blow	Automotive	Bolt Mount	0.00055 Ohms	ISO
OptiFuse MGGA-250A	125 °C	-40 °C	Pink	32 V	Auto Link	1 kA	389000	0.748 in	0.37 in	1.15 "	29.2 mm	9.4 mm	19 mm	250 A	Slow Blow	Automotive	Bolt Mount	0.00019 Ohms	ISO
OptiFuse MGGA-175A	125 °C	-40 °C	White	32 V	Auto Link	1 kA	168000	0.748 in	0.37 in	1.15 "	29.2 mm	9.4 mm	19 mm	175 A	Slow Blow	Automotive	Bolt Mount	0.00027 Ohms	ISO
OptiFuse MGGA-150A	125 °C	-40 °C		32 V	Auto Link	1 kA	100	0.748 in	0.37 in	1.15 "	29.2 mm	9.4 mm	19 mm	150 A	Slow Blow	Automotive	Bolt Mount	0.00035 Ohms	ISO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 A AC 32 V DC Fuse Automotive Bolt Mount Auto Link
