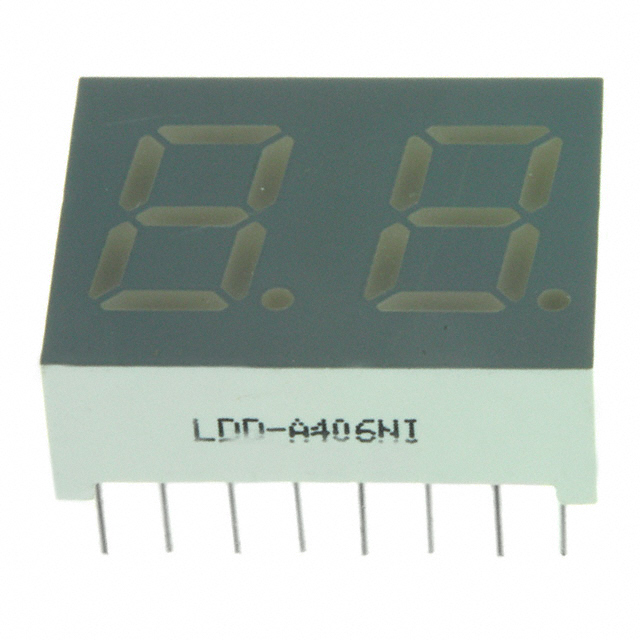

LDD-A406NI
ActiveLumex Opto/Components Inc.
DISPLAY 7-SEG 0.4" DBL RED 16DIP
Deep-Dive with AI
Search across all available documentation for this part.
LDD-A406NI
ActiveLumex Opto/Components Inc.
DISPLAY 7-SEG 0.4" DBL RED 16DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDD-A406NI |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 10.16 mm |
| Digit/Alpha Size [custom] | 0.4 in |
| Display Type | 7-Segment |
| Millicandela Rating | 6.3 mcd |
| Number of Characters | 2 |
| Package / Case | 0.5 in |
| Package / Case | 16-DIP |
| Package / Case | 12.7 mm |
| Power Dissipation (Max) [Max] | 105 mW |
| Size / Dimension [x] | 0.63 " |
| Size / Dimension [x] | 16 mm |
| Size / Dimension [y] | 20.1 mm |
| Size / Dimension [y] | 0.791 in |
| Size / Dimension [z] | 0.276 in |
| Size / Dimension [z] | 7 mm |
| Voltage - Forward (Vf) (Typ) | 1.7 V |
| Wavelength - Peak | 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.32 | |
| 25 | $ 2.62 | |||
| 100 | $ 2.25 | |||
| 500 | $ 1.97 | |||
| 1000 | $ 1.89 | |||
| 2000 | $ 1.82 | |||
| 5000 | $ 1.75 | |||
Description
General part information
LDD-A406 Series
Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 1.7V 10mA 0.630" H x 0.791" W x 0.276" D (16.00mm x 20.10mm x 7.00mm) 16-DIP (0.500", 12.70mm)
Documents
Technical documentation and resources
No documents available
