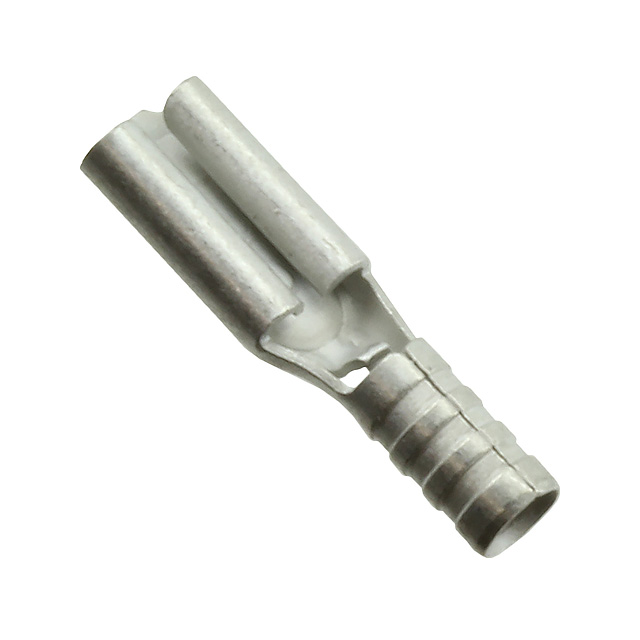

0190160001

Active

Molex

CONN QC RCPT 18-22AWG 0.110

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0190160001

Active

Molex

CONN QC RCPT 18-22AWG 0.110

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190160001

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Length - Overall [x]	14.48 mm
Length - Overall [x]	0.57 in
Mounting Type	Free Hanging (In-Line)
Tab Length	6.35 mm
Tab Length	0.25 in
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	2.79 mm
Tab Width	0.11 "
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019016 Series

Part	Contact Material	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Tab Thickness	Tab Thickness	Insulation	Termination	Gender	Terminal Type	Tab Width	Tab Width	Contact Finish	Tab Length	Tab Length	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall	Features	Length - Overall
Molex 0190160022	Brass	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.02 "	0.51 mm	Non-Insulated	Crimp	Female	Standard	4.75 mm	0.187 in	Electro-Tin
Molex 0190160003	Brass	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.032 in	0.81 mm	Non-Insulated	Crimp	Female	Standard	2.79 mm	0.11 "	Tin	6.35 mm	0.25 in	14.48 mm	0.57 in
Molex 0190160046	Brass	Free Hanging (In-Line)			0.032 in	0.81 mm	Non-Insulated	Crimp	Female	Standard	5.21 mm	0.205 in	Tin	6.35 mm	0.25 in			14.55 mm	0.573 "	Butted Seam
Molex 0190160086	Brass	Free Hanging (In-Line)	14 AWG	12 AWG	0.032 in	0.81 mm	Non-Insulated	Crimp	Female	Standard	6.35 mm	0.25 in	Electro-Tin	7.95 mm	0.313 in				15.93 mm		0.627 in
Molex 0190160007	Brass	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.032 in	0.81 mm	Non-Insulated	Crimp	Female	Standard	4.75 mm	0.187 in	Electro-Tin	6.35 mm	0.25 in	14.73 mm	0.58 in
Molex 0190160001	Brass	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.02 "	0.51 mm	Non-Insulated	Crimp	Female	Standard	2.79 mm	0.11 "	Tin	6.35 mm	0.25 in	14.48 mm	0.57 in
Molex 0190160085	Brass	Free Hanging (In-Line)	14 AWG	12 AWG	0.032 in	0.81 mm	Non-Insulated	Crimp	Female	Standard	6.35 mm	0.25 in	Electro-Tin	7.87 mm	0.31 in	16.76 mm	0.66 in
Molex 0190160008	Brass	Free Hanging (In-Line)	22 AWG	17.5 AWG	0.02 "	0.51 mm	Non-Insulated	Crimp	Female	Standard	4.75 mm	0.187 in	Electro-Tin	6.35 mm	0.25 in	14.73 mm	0.58 in
Molex 0190160069	Brass	Free Hanging (In-Line)	12 AWG	10 AWG	0.032 in	0.81 mm	Non-Insulated	Crimp	Female	Standard	6.35 mm	0.25 in	Tin	7.87 mm	0.31 in	17.91 mm	0.705 in			Butted Seam
Molex 0190160063	Brass	Free Hanging (In-Line)			0.032 in	0.81 mm	Non-Insulated	Crimp	Female	Standard	6.35 mm	0.25 in	Electro-Tin	7.87 mm	0.31 in	16.76 mm	0.66 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		10	$ 0.07
		100	$ 0.05
		1000	$ 0.04
		3000	$ 0.04

Description

General part information

019016 Series

0.110" (2.79mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Insulated

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
