CFT-1/4

Active

Bertech

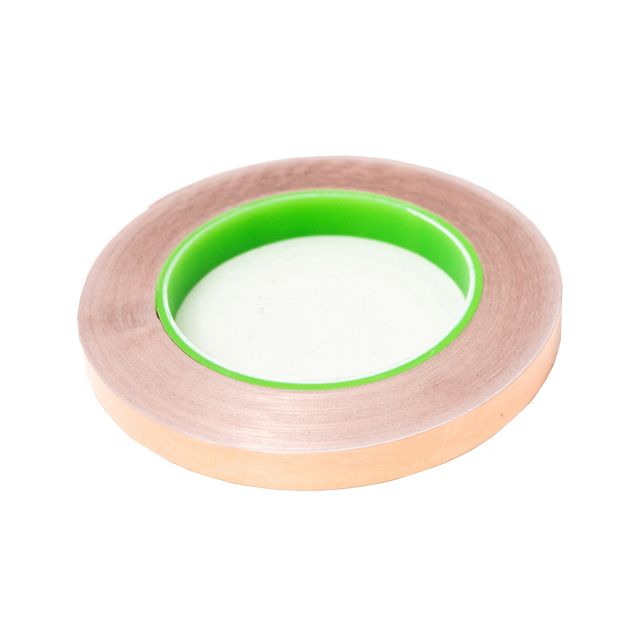

TAPE COPPER FOIL NATU 1/4"X36YD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFT-1/4

Active

Bertech

TAPE COPPER FOIL NATU 1/4"X36YD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFT-1/4

Adhesive	Acrylic
Backing, Carrier	Copper Foil
Color	Natural
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Tape Type	Copper Foil
Temperature Range	68.3 °C
Temperature Range	155 °F
Thickness	0.0026 "
Thickness	0.066 mm
Thickness	2.6 mils
Thickness - Adhesive	0.028 mm
Thickness - Adhesive	1.1 mils
Thickness - Adhesive	0.0011 in
Thickness - Backing, Carrier [x]	0.038 mm
Thickness - Backing, Carrier [x]	1.5 mils
Thickness - Backing, Carrier [x]	0.0015 in
Usage	EMI/RFI Shielding
Width	0.25 in
Width	0.25 in
Width	6.35 mm

CFT Series

Part	Usage	Backing, Carrier	Length	Length	Length	Width [x]	Width [x]	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Temperature Range	Temperature Range	Thickness	Thickness	Thickness	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Adhesive	Tape Type	Width	Width	Width	Thickness - Backing, Carrier [x]	Thickness - Backing, Carrier [x]	Thickness - Backing, Carrier [x]	Color	Shelf Life	Shelf Life Start	Width
Bertech CFT-20MM	EMI/RFI Shielding	Copper Foil	36 yd	32.9 m	108 ft	20 mm	0.79 in	0.0013 "	0.033 mm	1.3 mils	130 °C	266 °F	0.0026 "	0.066 mm	2.6 mils	0.0013 "	1.3 mils	0.033 mm	Acrylic	Copper Foil
Bertech CFT-1/4	EMI/RFI Shielding	Copper Foil	36 yd	32.9 m	108 ft						68.3 °C	155 °F	0.0026 "	0.066 mm	2.6 mils	0.0011 in	1.1 mils	0.028 mm	Acrylic	Copper Foil	0.25 in	0.25 in	6.35 mm	0.038 mm	1.5 mils	0.0015 in	Natural	18 Months	Date of Manufacture
Bertech CFT-3 1/2	EMI/RFI Shielding	Copper Foil	36 yd	32.9 m	108 ft			0.0013 "	0.033 mm	1.3 mils	130 °C	266 °F	0.0026 "	0.066 mm	2.6 mils	0.0013 "	1.3 mils	0.033 mm	Acrylic	Copper Foil		3.5 in	88.9 mm
Bertech CFT-1/8	EMI/RFI Shielding	Copper Foil	36 yd	32.9 m	108 ft			0.0013 "	0.033 mm	1.3 mils	130 °C	266 °F	0.0026 "	0.066 mm	2.6 mils	0.0013 "	1.3 mils	0.033 mm	Acrylic	Copper Foil	0.125 "	0.13 in	3.18 mm
Bertech CFT-9/16	EMI/RFI Shielding	Copper Foil	36 yd	32.9 m	108 ft			0.0013 "	0.033 mm	1.3 mils	130 °C	266 °F	0.0026 "	0.066 mm	2.6 mils	0.0013 "	1.3 mils	0.033 mm	Acrylic	Copper Foil	0.5625 "	0.56 "	14.3 mm
Bertech CFT-3/4	EMI/RFI Shielding	Copper Foil	36 yd	32.9 m	108 ft						68.3 °C	155 °F	0.0026 "	0.066 mm	2.6 mils	0.0011 in	1.1 mils	0.028 mm	Acrylic	Copper Foil	19.05 mm	0.75 in	0.75 in	0.038 mm	1.5 mils	0.0015 in	Natural	18 Months	Date of Manufacture
Bertech CFT-5/16	EMI/RFI Shielding	Copper Foil	36 yd	32.9 m	108 ft			0.0013 "	0.033 mm	1.3 mils	130 °C	266 °F	0.0026 "	0.066 mm	2.6 mils	0.0013 "	1.3 mils	0.033 mm	Acrylic	Copper Foil	0.3125 in	0.31 in	7.87 mm
Bertech CFT-3	EMI/RFI Shielding	Copper Foil	36 yd	32.9 m	108 ft	76.2 mm	3 in				68.3 °C	155 °F	0.0026 "	0.066 mm	2.6 mils	0.0011 in	1.1 mils	0.028 mm	Acrylic	Copper Foil				0.038 mm	1.5 mils	0.0015 in	Natural	18 Months	Date of Manufacture
Bertech CFT-4	EMI/RFI Shielding	Copper Foil	36 yd	32.9 m	108 ft	101.6 mm	4 "				68.3 °C	155 °F	0.0026 "	0.066 mm	2.6 mils	0.0011 in	1.1 mils	0.028 mm	Acrylic	Copper Foil				0.038 mm	1.5 mils	0.0015 in	Natural	18 Months	Date of Manufacture
Bertech CFT-3/16	EMI/RFI Shielding	Copper Foil	36 yd	32.9 m	108 ft			0.0013 "	0.033 mm	1.3 mils	130 °C	266 °F	0.0026 "	0.066 mm	2.6 mils	0.0013 "	1.3 mils	0.033 mm	Acrylic	Copper Foil	4.78 mm		0.19 in							0.1875 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.30
		2	$ 12.67
		3	$ 12.31
		5	$ 11.87
		7	$ 11.59
		10	$ 11.30
		25	$ 10.58
		50	$ 10.06
		100	$ 9.57

Description

General part information

CFT Series

Copper Foil Tape Acrylic Adhesive Natural 0.25" (6.35mm) 1/4" X 108' (32.9m) 36 yds
