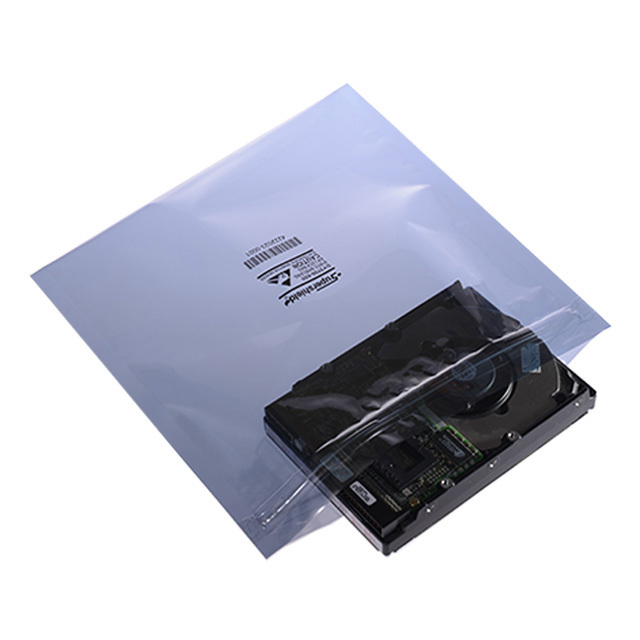

DY3700-628-ZB-2X3IN-H128

Active

DOU YEE ENTERPRISES

BAG STATIC SHIELD MTL IN 2"X3"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DY3700-628-ZB-2X3IN-H128

Active

DOU YEE ENTERPRISES

BAG STATIC SHIELD MTL IN 2"X3"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DY3700-628-ZB-2X3IN-H128

Closure System	Zip Lock
Length - Inside [custom]	76.2 mm
Length - Inside [custom]	3 in
Metal Layer	In
Static Discharge Shielding	15 nJ
Tensile Strength	5000 psi
Thickness	71.12 microns
Thickness	0.0028 in
Type	Static Shielding Bag
Width - Inside [y]	2 in
Width - Inside [y]	50.8 mm

DY3700 Series

Part	Width - Inside	Width - Inside	Thickness	Thickness	Closure System	Metal Layer	Length - Inside [x]	Length - Inside [x]	Tensile Strength	Type	Static Discharge Shielding	Length - Inside	Length - Inside	Width - Inside [x]	Width - Inside [x]	Length - Inside [custom]	Length - Inside [custom]	Width - Inside [y]	Width - Inside [y]
DOU YEE ENTERPRISES DY3700-628-ZB-6X10IN-H128	6 in	152.4 mm	71.12 microns	0.0028 in	Zip Lock	In	254 mm	10 in	5000 psi	Static Shielding Bag	15 nJ
DOU YEE ENTERPRISES DY3700-628-ZB-4X4IN-H128			71.12 microns	0.0028 in	Zip Lock	In			5000 psi	Static Shielding Bag	15 nJ	101.6 mm	4 in	101.6 mm	4 in
DOU YEE ENTERPRISES DY3700-628-ZB-2X3IN-H128			71.12 microns	0.0028 in	Zip Lock	In			5000 psi	Static Shielding Bag	15 nJ					76.2 mm	3 in	2 in	50.8 mm
DOU YEE ENTERPRISES DY3700-628-ZB-12X18IN-H128			71.12 microns	0.0028 in	Zip Lock	In		18 in	5000 psi	Static Shielding Bag	15 nJ	457.2 mm						12 in	304.8 mm
DOU YEE ENTERPRISES DY3700-628-ZB-8X8IN0-H128			71.12 microns	0.0028 in	Zip Lock	In			5000 psi	Static Shielding Bag	15 nJ	203.2 mm	8 in					8 in	203.2 mm
DOU YEE ENTERPRISES DY3700-628-ZB-4X6IN-H128			71.12 microns	0.0028 in	Zip Lock	In			5000 psi	Static Shielding Bag	15 nJ	152.4 mm	6 in	101.6 mm	4 in
DOU YEE ENTERPRISES DY3700-628-ZB-8X12IN-H128			71.12 microns	0.0028 in	Zip Lock	In	304.8 mm	12 in	5000 psi	Static Shielding Bag	15 nJ							8 in	203.2 mm
DOU YEE ENTERPRISES DY3700-628-ZB-18X24IN-H128			71.12 microns	0.0028 in	Zip Lock	In	609.6 mm	24 in	5000 psi	Static Shielding Bag	15 nJ							18 in	457.2 mm
DOU YEE ENTERPRISES DY3700-628-ZB-15X18IN-H128	15 in	381 mm	71.12 microns	0.0028 in	Zip Lock	In		18 in	5000 psi	Static Shielding Bag	15 nJ	457.2 mm
DOU YEE ENTERPRISES DY3700-628-ZB-8X10IN-H128			71.12 microns	0.0028 in	Zip Lock	In	254 mm	10 in	5000 psi	Static Shielding Bag	15 nJ							8 in	203.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 9.10
		20	$ 7.60
		40	$ 5.85

Description

General part information

DY3700 Series

Static Shielding Bag <15nJ Energy Shielding 2" (50.8mm) X 3" (76.2mm)
