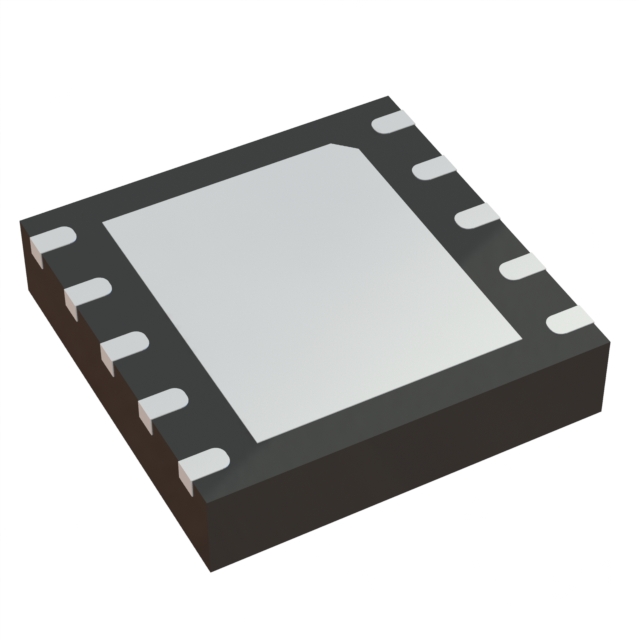

RTQ6365GQW
ActiveRichtek USA Inc.
IC REG BUCK ADJ 5A 10WDFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RTQ6365GQW
ActiveRichtek USA Inc.
IC REG BUCK ADJ 5A 10WDFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RTQ6365GQW |
|---|---|
| Current - Output | 5 A |
| Frequency - Switching [Max] | 2.5 MHz |
| Frequency - Switching [Min] | 100 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 10-WDFN Exposed Pad |
| Supplier Device Package | 10-WDFN (4x4) |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 60 V |
| Voltage - Input (Min) [Min] | 4 V |
| Voltage - Output (Max) [Max] | 60 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.68 | |
| 10 | $ 3.31 | |||
| 25 | $ 3.13 | |||
| 100 | $ 2.71 | |||
| 250 | $ 2.57 | |||
| 500 | $ 2.31 | |||
| Digi-Reel® | 1 | $ 4.99 | ||
| 10 | $ 3.33 | |||
| 25 | $ 2.90 | |||
| 100 | $ 2.41 | |||
| 250 | $ 2.18 | |||
| 500 | $ 2.03 | |||
| Tape & Reel (TR) | 1500 | $ 1.95 | ||
| 3000 | $ 1.85 | |||
Description
General part information
RTQ6365 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 5A 10-WDFN Exposed Pad
