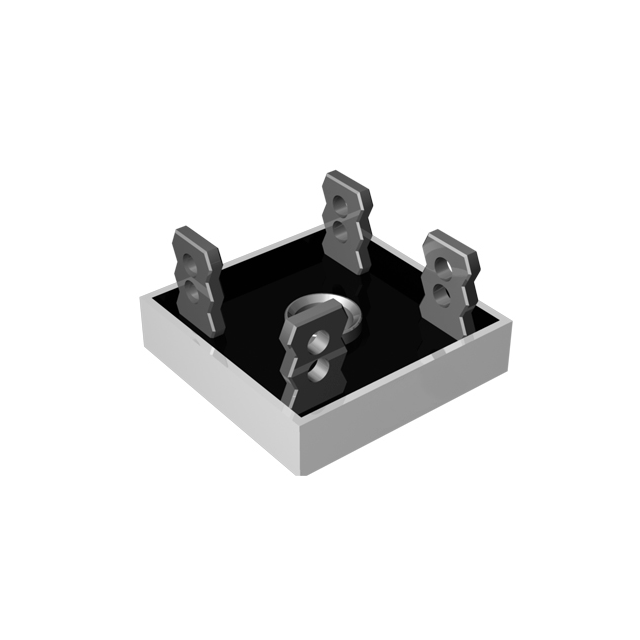

GBPC1506
ActiveSurge
15A -600V - GBPC - BRIDGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GBPC1506
ActiveSurge
15A -600V - GBPC - BRIDGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GBPC1506 |
|---|---|
| Current - Average Rectified (Io) | 15 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | QC Terminal |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -50 °C |
| Package / Case | 4-Square, GBPC |
| Supplier Device Package | GBPC |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Peak Reverse (Max) [Max] | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.24 | |
| Bulk | 1 | $ 6.41 | ||
| 50 | $ 3.40 | |||
| 100 | $ 3.11 | |||
| 500 | $ 2.60 | |||
| 1000 | $ 2.53 | |||
| Tray | 1 | $ 3.37 | ||
| 10 | $ 2.83 | |||
| 25 | $ 2.67 | |||
| 200 | $ 2.29 | |||
| 400 | $ 2.16 | |||
| 600 | $ 2.03 | |||
| 1000 | $ 1.74 | |||
| 2400 | $ 1.64 | |||
| 5000 | $ 1.57 | |||
Description
General part information
GBPC15 Series
Bridge Rectifier Single Phase Standard 600 V QC Terminal GBPC
