IM04JR

Active

TE Connectivity Potter & Brumfield Relays

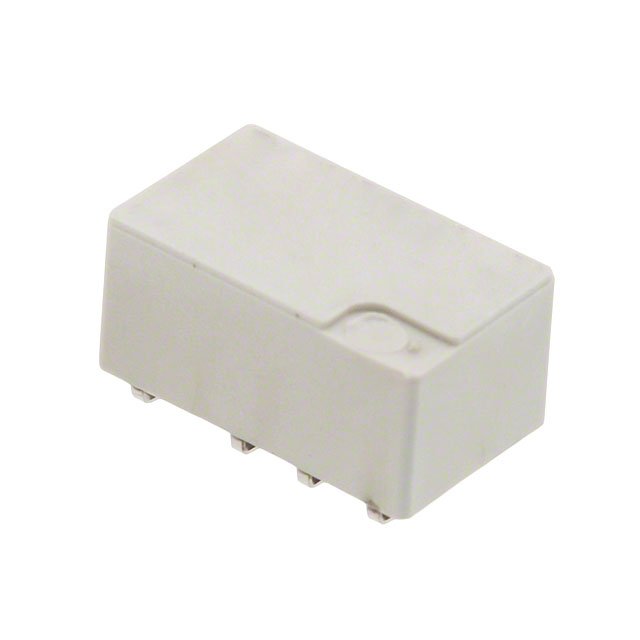

RELAY TELECOM DPDT 2A 6V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IM04JR

Active

TE Connectivity Potter & Brumfield Relays

RELAY TELECOM DPDT 2A 6V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IM04JR

Coil Current	23.3 mA
Coil Resistance	257 Ohms
Coil Type	Non Latching
Contact Form	DPDT (2 Form C)
Contact Material	Palladium (Pd), Gold (Au), Ruthenium (Ru)
Contact Rating (Current)	2 A
Load - Max Switching	440 W, 500 VA
Mounting Type	Surface Mount
Must Operate Voltage	4.5 VDC
Must Release Voltage	0.6 VDC
Operate Time	3 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	Telecom
Release Time	3 ms
Seal Rating	Sealed - Hermetically
Switching Voltage	250 VAC, 220 VDC
Termination Style	J Lead

1462037 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Operate Time	Load - Max Switching	Mounting Type	Contact Rating (Current)	Relay Type	Contact Material	Coil Voltage	Switching Voltage	Coil Resistance	Coil Current	Contact Form	Termination Style	Coil Type	Seal Rating	Release Time	Must Release Voltage
TE Connectivity Potter & Brumfield Relays 7-1462037-0	85 °C	-40 °C	18 VDC	3 ms	440 W 500 VA	Surface Mount	2 A	Telecom	Gold (Au) Palladium (Pd) Ruthenium (Ru)	24 VDC	220 VDC 250 VAC	2.88 kOhms	8.3 mA	DPDT (2 Form C)	Gull Wing	Latching Single Coil	Sealed - Hermetically	3 ms
TE Connectivity Potter & Brumfield Relays IM05GR	85 °C	-40 °C	6.75 VDC	3 ms	440 W 500 VA	Surface Mount	2 A	Telecom	Gold (Au) Palladium (Pd) Ruthenium (Ru)	9 VDC	220 VDC 250 VAC	579 Ohms	15.5 mA	DPDT (2 Form C)	Gull Wing	Non Latching	Sealed - Hermetically	3 ms	0.9 VDC
TE Connectivity Potter & Brumfield Relays 5-1462037-4	85 °C	-40 °C	2.25 VDC	3 ms	440 W 500 VA	Surface Mount	2 A	Telecom	Gold (Au) Palladium (Pd) Ruthenium (Ru)		220 VDC 250 VAC	90 Ohms	33.3 mA	DPDT (2 Form C)	Gull Wing	Latching Single Coil	Sealed - Hermetically	3 ms
TE Connectivity Potter & Brumfield Relays 5-1462037-3	85 °C	-40 °C	2.25 VDC	3 ms	440 W 500 VA	Through Hole	2 A	Telecom	Gold (Au) Palladium (Pd) Ruthenium (Ru)		220 VDC 250 VAC	90 Ohms	33.3 mA	DPDT (2 Form C)	PC Pin	Latching Single Coil	Sealed - Hermetically	3 ms
TE Connectivity Potter & Brumfield Relays 6-1462037-1	85 °C	-40 °C	4.5 VDC	3 ms	440 W 500 VA	Through Hole	2 A	Telecom	Gold (Au) Palladium (Pd) Ruthenium (Ru)		220 VDC 250 VAC	360 Ohms	16.7 mA	DPDT (2 Form C)	PC Pin	Latching Single Coil	Sealed - Hermetically	3 ms
TE Connectivity Potter & Brumfield Relays IM04JR	85 °C	-40 °C	4.5 VDC	3 ms	440 W 500 VA	Surface Mount	2 A	Telecom	Gold (Au) Palladium (Pd) Ruthenium (Ru)		220 VDC 250 VAC	257 Ohms	23.3 mA	DPDT (2 Form C)	J Lead	Non Latching	Sealed - Hermetically	3 ms	0.6 VDC
TE Connectivity Potter & Brumfield Relays IM06JR	85 °C	-40 °C	9 VDC	3 ms	440 W 500 VA	Surface Mount	2 A	Telecom	Gold (Au) Palladium (Pd) Ruthenium (Ru)	12 VDC	220 VDC 250 VAC	1030 Ohms	11.6 mA	DPDT (2 Form C)	J Lead	Non Latching	Sealed - Hermetically	3 ms	1.2 VDC
TE Connectivity Potter & Brumfield Relays IM07GR	85 °C	-40 °C	18 VDC	3 ms	440 W 500 VA	Surface Mount	2 A	Telecom	Gold (Au) Palladium (Pd) Ruthenium (Ru)	24 VDC	220 VDC 250 VAC	2.88 kOhms	8.3 mA	DPDT (2 Form C)	Gull Wing	Non Latching	Sealed - Hermetically	3 ms	2.4 VDC
TE Connectivity Potter & Brumfield Relays 5-1462037-9	85 °C	-40 °C	3.75 VDC	3 ms	440 W 500 VA	Surface Mount	2 A	Telecom	Gold (Au) Palladium (Pd) Ruthenium (Ru)	5 VDC	220 VDC 250 VAC	250 Ohms	20 mA	DPDT (2 Form C)	Gull Wing	Latching Single Coil	Sealed - Hermetically	3 ms
TE Connectivity Potter & Brumfield Relays IM04GR	85 °C	-40 °C	4.5 VDC	3 ms	440 W 500 VA	Surface Mount	2 A	Telecom	Gold (Au) Palladium (Pd) Ruthenium (Ru)		220 VDC 250 VAC	257 Ohms	23.3 mA	DPDT (2 Form C)	Gull Wing	Non Latching	Sealed - Hermetically	3 ms	0.6 VDC
