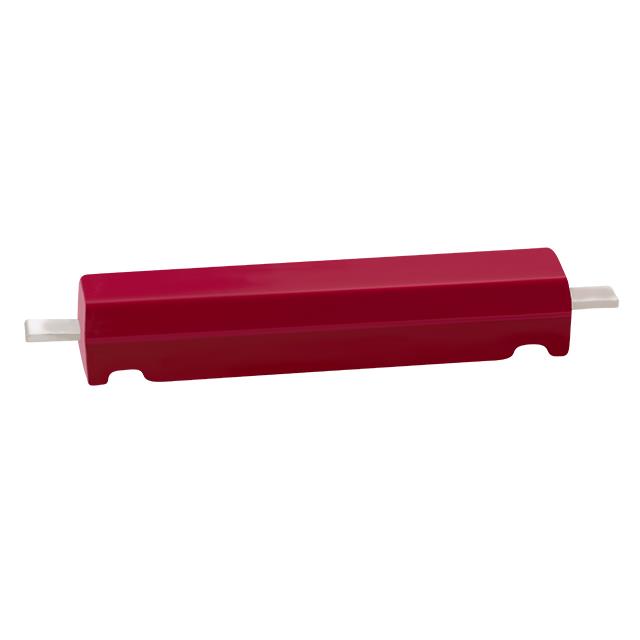

CT10-1040-A2

Obsolete

Coto Technology

SWITCH REED SPST-NO 500MA 140V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsReed Switches Technical, Appl Info Datasheet

CT10-1040-A2

Obsolete

Coto Technology

SWITCH REED SPST-NO 500MA 140V

Deep-Dive with AI

DocumentsReed Switches Technical, Appl Info Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT10-1040-A2

Circuit	SPST-NO
Current - Carry	500 mA
Current - Switching	500 mA
Length - Overall [x]	15.6 mm
Length - Overall [x]	0.614 in
Mounting Type	Surface Mount
Operate Range [Max] [custom]	40 AT
Operate Range [Min] [custom]	10 AT
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Power - Rated	10 W
Release Range [Max]	35 AT
Release Range [Min]	3 AT
Size - Body [x]	0.505 in
Size - Body [x]	12.83 mm
Size - Body [y]	0.095 in
Size - Body [y]	2.41 mm
Size - Body [z]	0.095 in
Size - Body [z]	2.41 mm
Termination Style	Axial, Flat
Type	Molded Body Reed
Voltage - Switching AC [custom]	140 V
Voltage - Switching DC	200 V

CT10 Series

Part	Type	Power - Rated	Size - Body [z]	Size - Body [y]	Size - Body [y]	Size - Body [z]	Size - Body [x]	Size - Body [x]	Current - Switching	Termination Style	Mounting Type	Voltage - Switching DC	Length - Overall [x]	Length - Overall [x]	Voltage - Switching AC [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Height Above Board	Height Above Board	Operate Range [Max] [custom]	Operate Range [Min] [custom]	Current - Carry	Operate Range [Min]	Operate Range [Max]	Length - Overall	Length - Overall	Operate Range [Max]	Release Range [Min]	Release Range [Max]
Coto Technology CT10-1530-G1	Molded Body Reed	10 W	2.92 mm	2.41 mm	0.095 in	0.115 in	11.63 mm	0.458 in	500 mA	Gull Wing	Surface Mount	200 V	16.26 mm	0.64 in	140 V	125 °C	-40 °C	SPST-NO	0.115 in	2.92 mm	30 AT	15 AT	500 mA
Coto Technology CT10-1020-G1	Molded Body Reed	10 W	2.92 mm	2.41 mm	0.095 in	0.115 in	11.63 mm	0.458 in	500 mA	Gull Wing	Surface Mount	200 V	16.26 mm	0.64 in	140 V	125 °C	-40 °C	SPST-NO	0.115 in	2.92 mm			500 mA	10	20 AT
Coto Technology CT10-1540-G4	Molded Body Reed	10 W	2.41 mm	2.29 mm	0.09 in	0.095 in	12.83 mm	0.505 in	500 mA	Gull Wing	Surface Mount	200 V			140 V	125 °C	-40 °C	SPST-NO	0.1 in	2.54 mm			500 mA	15	40 AT	0.77 in	19.56 mm
Coto Technology CT10-1540-G2	Molded Body Reed	10 W	2.92 mm	2.41 mm	0.095 in	0.115 in	11.63 mm	0.458 in	500 mA	Gull Wing	Surface Mount	200 V			140 V	125 °C	-40 °C	SPST-NO	0.115 in	2.92 mm			500 mA	15	40 AT	0.77 in	19.56 mm
Coto Technology CT10-1030-G1	Molded Body Reed	10 W	2.92 mm	2.41 mm	0.095 in	0.115 in	11.63 mm	0.458 in	500 mA	Gull Wing	Surface Mount	200 V	16.26 mm	0.64 in	140 V	125 °C	-40 °C	SPST-NO	0.115 in	2.92 mm			500 mA	10				30AT
Coto Technology CT10-1040-G1	Molded Body Reed	10 W	2.92 mm	2.41 mm	0.095 in	0.115 in	11.63 mm	0.458 in	500 mA	Gull Wing	Surface Mount	200 V	16.26 mm	0.64 in	140 V	125 °C	-40 °C	SPST-NO	0.115 in	2.92 mm	40 AT	10 AT	500 mA						3 AT	35 AT
Coto Technology CT10-1040-A2	Molded Body Reed	10 W	2.41 mm	2.41 mm	0.095 in	0.095 in	12.83 mm	0.505 in	500 mA	Axial Flat	Surface Mount	200 V	15.6 mm	0.614 in	140 V	125 °C	-40 °C	SPST-NO			40 AT	10 AT	500 mA						3 AT	35 AT
Coto Technology CT10-1540-G1	Molded Body Reed	10 W	2.92 mm	2.41 mm	0.095 in	0.115 in	11.63 mm	0.458 in	500 mA	Gull Wing	Surface Mount	200 V	16.26 mm	0.64 in	140 V	125 °C	-40 °C	SPST-NO	0.115 in	2.92 mm			500 mA	15	40 AT
Coto Technology CT10-1020-A2	Molded Body Reed	10 W	2.41 mm	2.41 mm	0.095 in	0.095 in	12.83 mm	0.505 in	500 mA	Axial Flat	Surface Mount	200 V	15.6 mm	0.614 in	140 V	125 °C	-40 °C	SPST-NO					500 mA	10	20 AT
Coto Technology CT10-1530-G4	Molded Body Reed	10 W	2.41 mm	2.29 mm	0.09 in	0.095 in	12.83 mm	0.505 in	500 mA	Gull Wing	Surface Mount	200 V			140 V	125 °C	-40 °C	SPST-NO	0.1 in	2.54 mm	30 AT	15 AT	500 mA			0.77 in	19.56 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CT10 Series

Molded Body Reed Switch SPST-NO 10 ~ 40AT Operate Range 10W 500mA (AC/DC) 140 V Surface Mount

Documents

Technical documentation and resources

Reed Switches Technical, Appl Info

Datasheet
