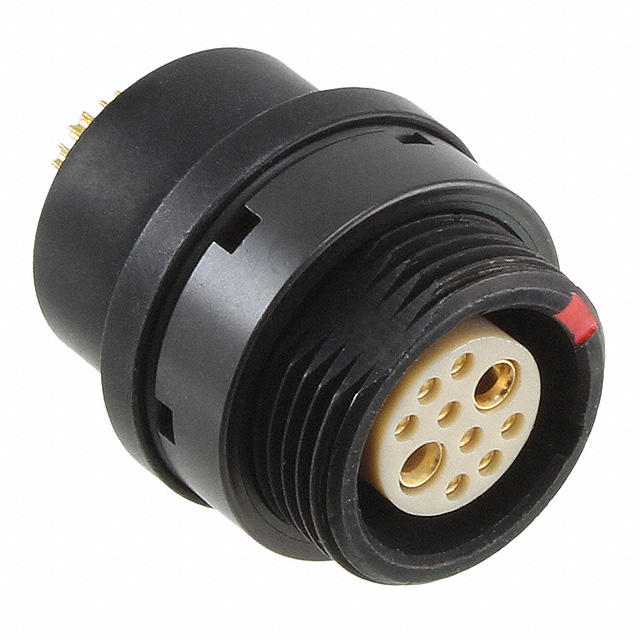

JDXER2T002FSN

Active

Souriau-Sunbank by Eaton

CONN RCPT FMALE 10P SOLDER CUP

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT FMALE 10P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JDXER2T002FSN

Applications	Instrumentation, Medical, Military, Industrial
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Current Rating (Amps)	17 A, 7 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions [custom]	2
Number of Positions [custom]	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	T
Primary Material	Metal
Shell Finish	Black Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	2-002
Shielding	Shielded
Voltage Rating	700 VDC

Part	Primary Material	Color	Insert Material	Fastening Type	Contact Finish - Mating	Shell Size - Insert	Ingress Protection	Number of Positions [custom]	Number of Positions [custom]	Shell Material	Current Rating (Amps)	Orientation	Mounting Feature	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Shielding	Voltage Rating	Shell Finish	Number of Positions [custom]	Number of Positions [custom]
Souriau-Sunbank by Eaton JDXER2T002FSN	Metal	Black	Polyetheretherketone (PEEK)	Push-Pull	Gold	2-002	IP68 - Dust Tight Waterproof	2	8	Brass	7 A 17 A	T	Bulkhead - Front Side Nut	Receptacle Female Sockets	125 °C	-40 °C	0.5 µm	19.7 µin	Industrial Instrumentation Medical Military	Shielded	700 VDC	Black Chrome over Nickel
Souriau-Sunbank by Eaton JDXER2T001FSN	Metal	Black	Polyetheretherketone (PEEK)	Push-Pull	Gold	2-001	IP68 - Dust Tight Waterproof	2		Brass	7 A 30 A	T	Bulkhead - Front Side Nut	Receptacle Female Sockets	125 °C	-40 °C	0.5 µm	19.7 µin	Industrial Instrumentation Medical Military	Shielded	700 VDC	Black Chrome over Nickel	8	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 (8 + 2 Power) Position Circular Connector Receptacle, Female Sockets Solder Cup
